METRE CODE:
Please note that this product is sold in METRES.
Ensure that your order quantity matches your desired length (ie. 30 for 30m).
Length in brackets- eg. (100m) denotes available roll length.

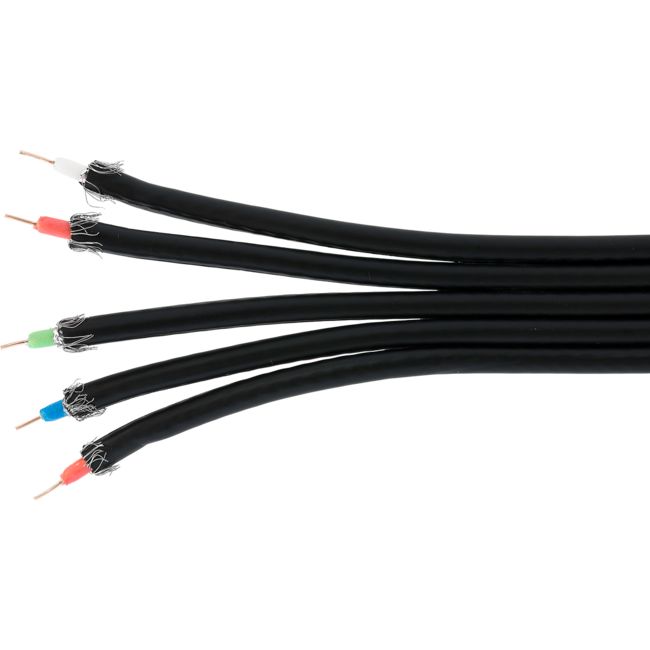

RG59RGBTS WITH STEREO COAX CABLE
Features: - Ideal for professional, permanent AV installations (inside walls, under floors etc.)
- RGB colour coded cores
- Conductor use purest OFC, it has the characteristicsof high conductivity, low electric resistance, good signal transmission
- Insulation uses foamed PE, which has low dielectricconstant, low capacitance, less attenuation and distortion, ensure signal quality and transmits image and sound signals with high stability and fidelity
- Adopting double shield, aluminum foil + AL/Mg braiding, minimal circuit interference, high signal-to-noiseratio is obtained
- Soft, highly flexible PVC outer jacket is vibration-resistant. It is free of signal quality deterioration caused by molding vibration and bending
Specifications: - Conductor: 5*1/Ø0.8mm OFC
- Insulation: 5*Ø3.65mm Foamed PE
- Lapping: 5*AL/Mylar
- Braiding: 5*16/3/0.16mm AL/Mg
- Jacket: 5*Ø6.0mm PVC
- Wave impedance: 75±3 ohm(@200MHz)
- Attenuation at 20C: 1 1~450MHz = 20dB/100m 450~862MHz = 30dB/100m 862~2150MHz = 45dB/100m
- Capacity/m: 54±5pF
Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.
Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
