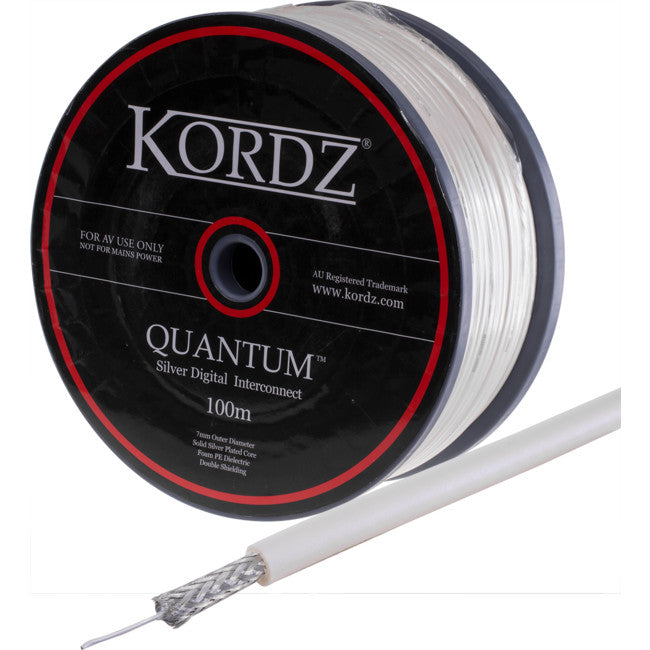

QUANTUMPL-1M PREMIUM SILVER PLATED CABLE-1M VIDEO COAX DIGITAL AUDIO PEARL KORDZ QUANTUM PEARL

QUANTUM - PEARL -1 Metre

The QUANTUM- PEARL series interconnect is a highly versatile installation cable, and is ideal for Video and Co-axial audio installations



FEATURES

  • STUNNING Silver Plated Serial Digital, for high performance video or coaxial digital audio
  • 24AWG solid OFC core coated with high purity Silver - provides superior transmission with high frequency “Skin Effect”
  • Nitrogen injected PE dielectric and 100% screen doubleshielding for enhanced signal integrity
  • Pearl PVC high tensile outer jacket 5mm O. Provides excellent pull strength and durability without compromising flexibility
  • Suits PD3029 compression connector
  • Sold Per Metre



SPECIFICATIONS

Conductors 24AWG 1/0.50mm Solid Silver Plated 99.9998% OFC
Insulation FPE Dielectric - natural colour
Shield 100% double shield by way of;
Mylar coated Al-foil wrap + 16x7/0.12mm TC braid
Outer Jacket 7mm Diameter color coded high tensile pearl PVC
Conductor Resistance 0.090 ohms/m @20 C
Capacitance 59.63 pF/m @ 1kHz
Inductance 0.391 uH/m @ 1kHz
Nominal Impedance 75 ohm - for analogue video or coaxial digital audiouse
