$2.00

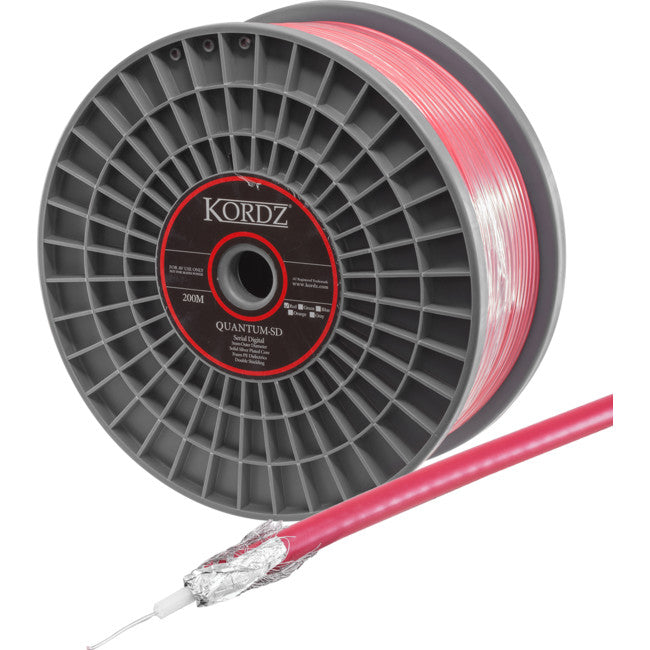

The QUANTUM-SD ( small diameter )series interconnect is ahighly versatile installation cable, permitting you the convenient choice of the number and combination of cable runs required for any particular installation.
It has been designed as an alternative to the popular QUANTUM-C (3 core component video) and QUANTUM-VI (6 core multi format coax), with the construction being identical to
each leg in these multi-core cables.
| Conductors | 24AWG 1/0.50mm Solid Silver Plated 99.9998% OFC |
| Insulation | FPE Dielectric - natural colour |
| Shield | 100% double shield by way of; Mylar coated Al-foil wrap + 16x7/0.12mm TC braid |
| Outer Jacket | 5mm Diameter color coded high tensile pearl PVC - RED |
| Conductor Resistance | 0.090 ohms/m @20 C |
| Capacitance | 59.63 pF/m @ 1kHz |
| Inductance | 0.391 uH/m @ 1kHz |
| Nominal Impedance | 75 ohm - for analogue video or coaxial digital audiouse |
