Q100-048 QUANTUM 360 DEGREE PIR DETECTOR NESS IR360 NESS 100-048

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

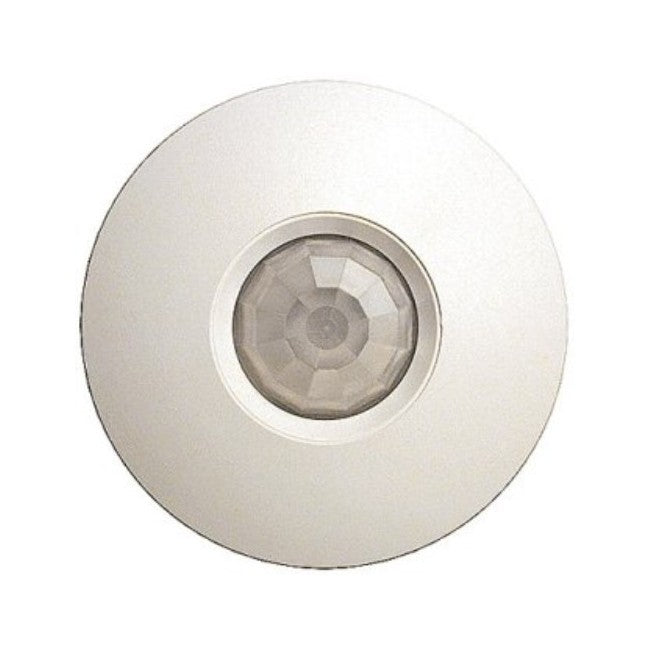

QUANTUM 360 PIR - NESS

The Quantum 360 ceiling mount detector, for complete and reliable 360° coverage. Provides coverage of 12 metre diameter at floor level when installed on a standard2.4 metre ceiling.

Utilising the latest SMD technology and  incorporating the proven Quantum design with selectable Pulse Count and sensitivity the IR360 provides outstanding performance at an unbelievable price.

FEATURES:

  • Ceiling mount with 360° coverage ideal in crowded rooms where objects may block the view of wall mounted detectors.
  • Detection zones: 34 Dual element zones
  • Coverage: 12.8m x 8M
  • Mounting height: 2.1M to 5M
  • Superior false alarm protection
  • Adjustable range (Hi-Lo Shunt)
  • Selectable pulse count (1-2, 3-4)
  • RFI Protection
  • Walk test LED
  • Temperature Change Protection
  • N/C alarm output
  • 12V DC operation
  • Tamper protection

SPECIFICATIONS:

  • Dimensions: 102mm diameter x 30mm
  • Mounting height: 2.4m ceiling (recommended)
  • Detection zones: 33 dual element zones
  • Sensor: Dual element pyro-electric
  • Operating voltage: 9–15 VDC
  • Current draw: 15mA
  • R.F.I. Immunity: >15V/m @ 10-1000MHz
  • Relay output: Normally closed
