RELIABLE HARSH ENVIRONMENT MOTION PROTECTION

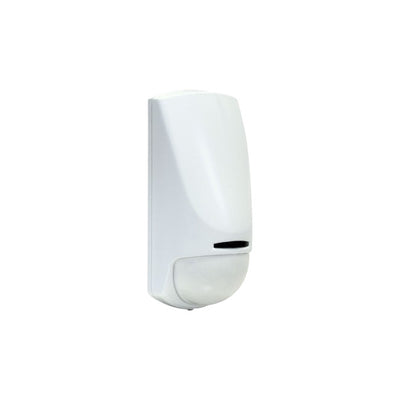

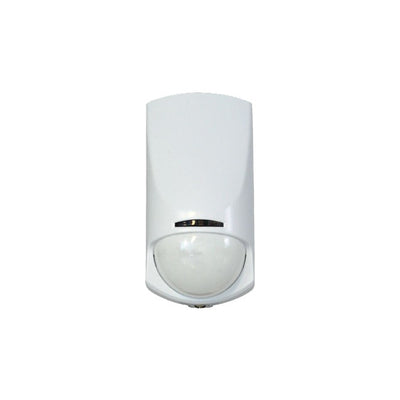

The Ness QDT200H-A (or XDT200H) Dual Technology PIR / Microwave is a motion detector specially designed for the protection of areas of harsh environment or where added protection against false alarms is required.
Installed in rooms or in hallways, the dual detection technology detector protects you by detecting intruders body temperature using infra-red technology and motion with its Microwave technology.
Dual technology 15-metre detector using both microwave and passive infrared (PIR) detection. This combination of technologies virtually eliminates false alarms but faithfully detects intruders.
Features:
| MOUNTING HEIGHT | 2 .2 m wall or corner |
| COVERAGE | 15m x 15m @ 100° |
| PIR SENSOR | dual element pyroelectric |
| MICROWAVE SOURCE | Solid state 10.525 GHz |
| MICROWAVE RANGE SELECT | Adjustable |
| PULSE COUNT | Adjustable |
| VISUAL DISPLAY | 3 Signalling LED's |
| OPERATING VOLTAGE | 9 - 16 VDC |
| DIMENSIONS (H-W-D) | 120x60x44 mm |
| TEMPERATURECOMPENSATION | Yes |
| CURRENT DRAW | 20mA @ 12VDC |
| ALARM OUTPUT | Normally closed relay, dry contacts. Max. 0.5A@24V |
