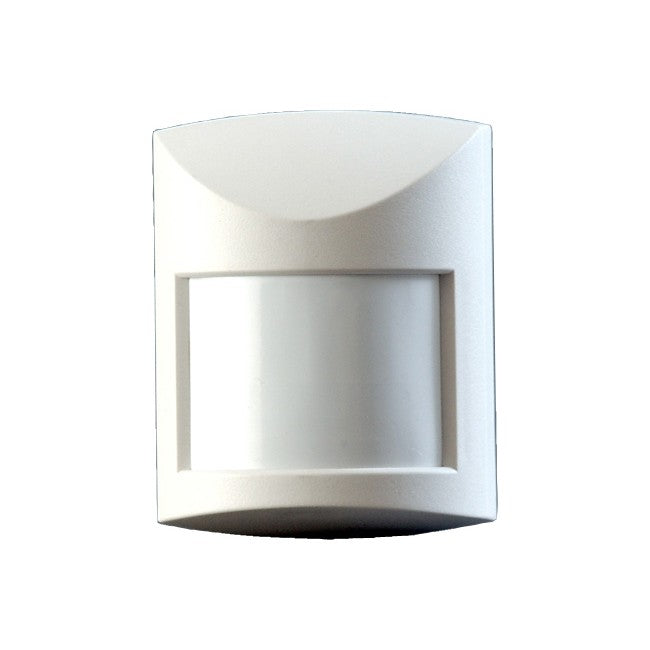

106-259 QUANTUM-Q PET AWARE PIR NESS (100-695) NESS 106-259


The Ness Quantum -Q PET is the most popular PIR ever produced by Ness Corporation. Now boasting a QUAD Element Pyro Sensor it has a better detection rate and higher noise immunity for lower false alarms.
Quantum-Q is Australian designed and made using precision S.M.D. technology. With enhanced 15 metre wide angle coverage, selectable Pulse Count and Sensitivity adjustmentsproviding the flexibility to use the Quantum-Q in most environments.
Installed in rooms or in hallways, Ness Quantum-Q protectsyou by detecting intruders body temperature using infra-red technology. It offers quality, performance and reliability at the right price.
Pet Immunity is set typically for a single pet up to 18kg or multiple pets uo to 10kg total.
Very discrete in size, designed for all types of interiors with a detection range of 15m.

  • Quad element pyro sensor
  • 15m x 15m wide angle coverage
  • Standard (Std model refer Ness Part No. 106-079) and Pet Aware models
  • Adjustable Pulse Count
  • Adjustable Range
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • High quality patented Fresnel lens
  • Front cover tamper protection
  • Totally silent solid state relay with high immunity tomagnetic fields
  • Optional mounting bracket available
  • 9~15VDC Operation
  • Optional Q100-243 bracket sold separately

{tab Specifications}

MOUNTING HEIGHT 1.1m min, 3.1 max, 2.1m-2.3m for optiomal detection’á
COVERAGE 15m x 15m @ 90’_x0015_’á
DETECTION ZONES 20 QUAD element zones
PET IMMUNITY Single pet up to 18kg or multiple pets up to 10kg total
RANGE SELECT Selectable High/Low ’á(15m/12m)
PULSE COUNT Selectable 1?2 or 3?4.
OPERATING VOLTAGE ’á ’á ’á ’á ’á ’á ’á ’á 9 - 15 VDC
DIMENSIONS (H-W-D) 85 x 66 x 45 mm
ALARM PERIOD 5 seconds
WARM UP PERIOD 30 seconds
ALARM OUTPUT Normally closedrelay, dry contacts. Max. 100mA@24V
TAMPER OUTPUT Normally closeddry contacts
