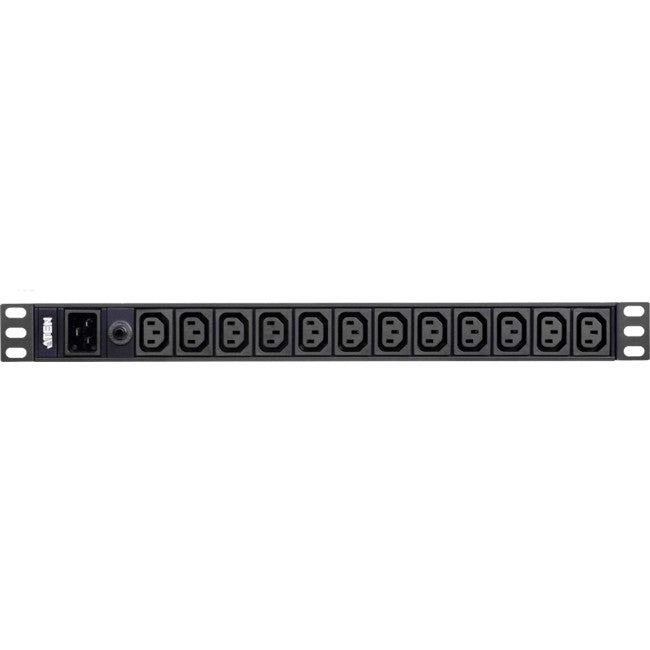

The PE0112 series Basic PDU contains 12 AC outlets. The PE0112 series Basic PDU features a space-saving 1U design that allows it to be mounted vertically on the outside of a rack, resulting in a moreeffi cientuse of space in the server room, while providing 12 AC outlets.
| Electrical | |
| Nominal Input Voltage | 100-240 VAC |
| Maximum Input Current | 10A(Max) |
| Input Frequency | 50-60 Hz |
| Input Connection | IEC-320 C14 |
| Input Power | 2400 VA(Max) |
| Outlet Type | (12) IEC 320 C13 |
| Nominal Output Voltage | 240V |
| Maximum Output Current (Outlet) | 10A(Max) |
| Maximum Output Current (Bank) | 10A(Max) |
| Maximum Output Current (Total) | 10A(Max) |
| OPD(Overcurrent Protection Device) | Yes |
| Physical Properties | |
| Dimensions (L x W x H) | 48.80 x 4.40 x 4.50 cm (19.21 x 1.73 x 1.77 in.) |
| Weight | 0.62 kg ( 1.37 lb ) |
| Power Cord Length | 10ft(3×1.0mm2) |
| Environmental | |
| Temperature (Operating / Storage) | 0 – 40°C / -20 – 60°C *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. |
| Elevation (Operating / Storage) | 3000m |
| Compliance | |
| EMC Verification | CE Class A |
| Safety Verification | CE,LVD |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
