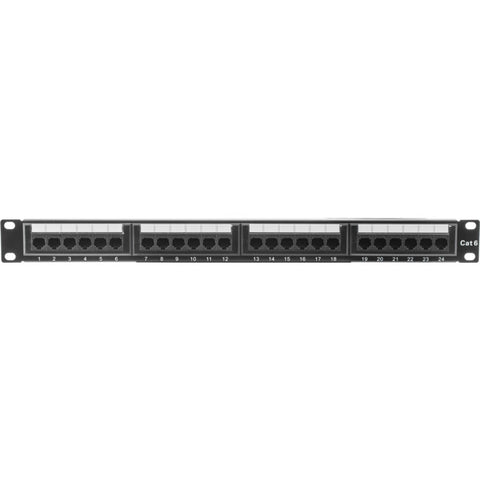

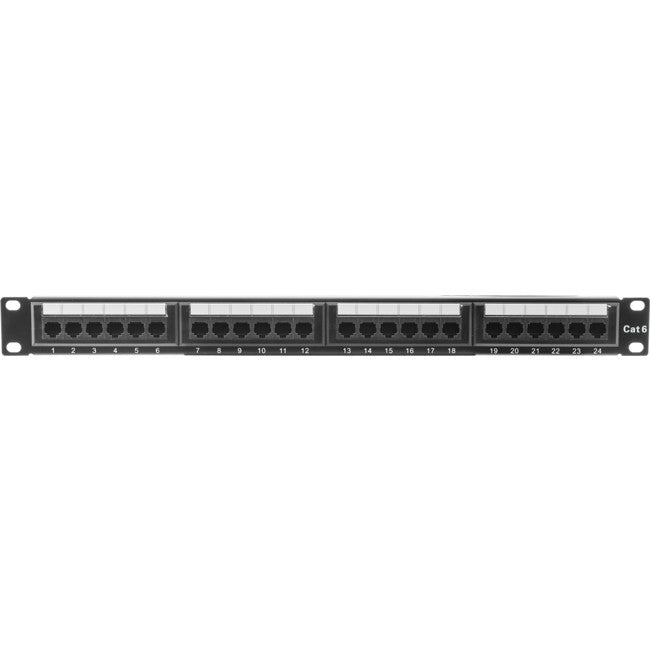

PPC624 24 PORT CAT6 PATCH PANEL TE TECH TE PP246-K/BLK

PPC624 24 PORT CAT6 PATCH PANEL TE TECH TE PP246-K/BLK

CAT6 METAL PATCH PANEL

FEATURES:

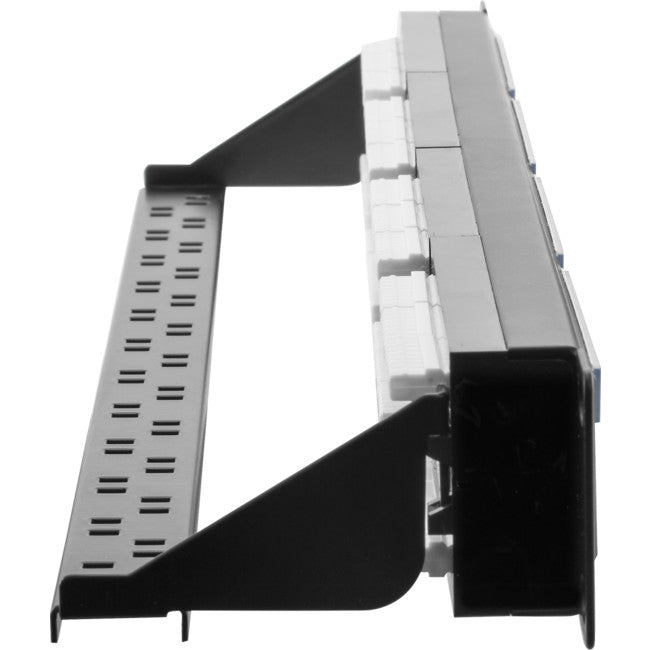

  • Patch panel case, metal 1U
  • RJ45 Jack
    • Body: PC UL94V-0 rated.
    • Colour: Black, other colours available MOQ
    • Contacts: Phophor Bronze,
    • 50u” Gold plated over Nickel plated in contact area.
    • Tin-lead over Nickel in solder area.

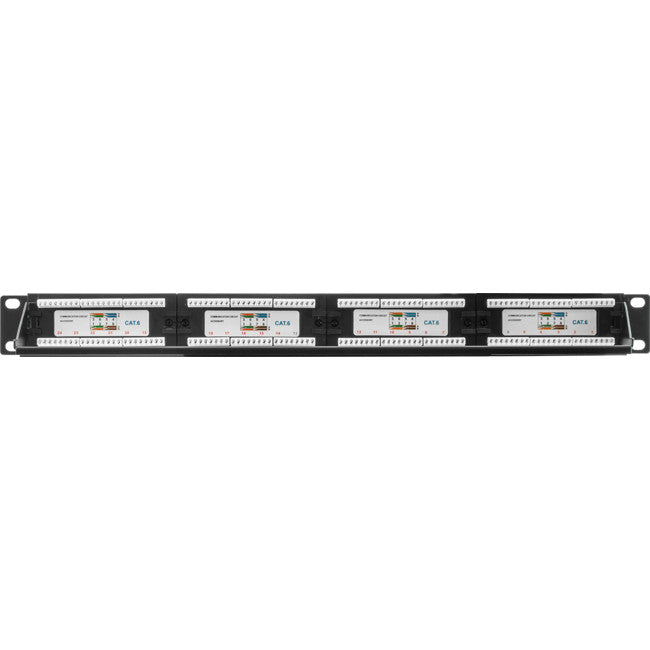

  • Connector:
    • 110 connector body: PC UL94V-0
    • Colour: Ivory
    • Contact: Phosphor Bronze with Tin plated
  • P.C. board: FR4, 1.6mm double side, UL94V-0
  • Operation temperature: 0˚ to 80˚C
  • Insertion force: 900gms for 8 contacts
  • Retention strength: 7.7kgs between jack and plug
  • Durability: 750 cycles contact resistance test check every 100 cycles. Insertion cycles at 20 cycles/minute max.
  • Certificates: ETL verify, UL listed, ANSI/TIA/EIA-568-B.2 SO/IEC 11081 class E, FCC

Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.

Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
