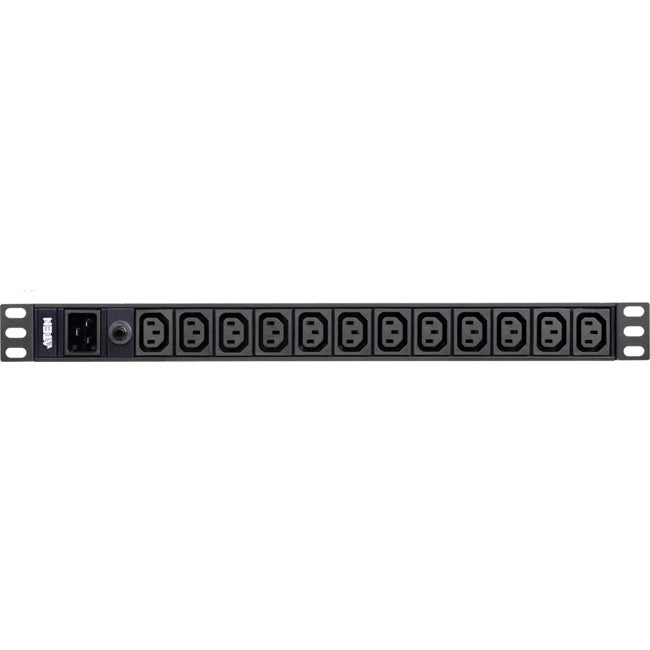

PE0212G ATEN 12 PORT 1U PDU 15A IEC-C13 X 12 ATEN PE0212G-AT-G

PE0212G ATEN 12 PORT 1U PDU 15A IEC-C13 X 12 ATEN PE0212G-AT-G

Features

Aten 12 Port 1U Basic PDU supports up to 15A with 12 IEC C13 outputs, overload protection

Overview

The PE0212 series Basic PDU contains 12 AC outlets. The PE0212 series Basic PDU features a space-saving 1U design that allows it to be mounted vertically on the outside of a rack, resulting in a moreeffi cientuse of space in the server room, while providing 12 AC outlets.

  • Space saving -1U rack mount design
  • 15A IEC outlets
  • Overcurrent Protection
  • Aluminum material
Package Contents
  • 1x Basic PDU
  • 1x Power cord
  • 1x User Instructions

Specifications

Function PE0212G
Electrical
Nominal Input Voltage 100-240 VAC
Maximum Input Current 16A (Max)
Input Frequency 50-60 Hz
Input Connection IEC-320 C20
Input Power 3840VA(Max)
Outlet Type (12) IEC 320 C13
Maximum Output Current (Outlet) 10A (Max)
Maximum Output Current (Bank) 16A (Max)
Maximum Output Current (Total) 16A (Max)
OPD(Overcurrent Protection Device) Yes
Physical Properties
Dimensions (L x W x H) 48.80 x 4.40 x 4.50 cm
(19.21 x 1.73 x 1.77 in.)
Weight 0.88 kg ( 1.95 lb )
Power Cord Length 10ft(3×1.5mm2)
Environmental
Temperature (Operating / Storage) 0 – 40°C / -20 – 60°C
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.
Elevation (Operating / Storage) 3000m
Compliance
EMC Verification CE Class A
Safety Verification CE, LVD
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
