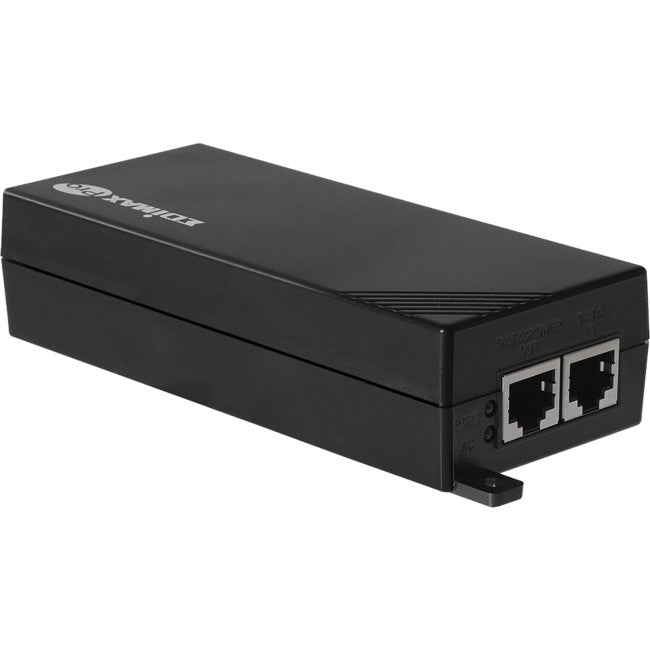

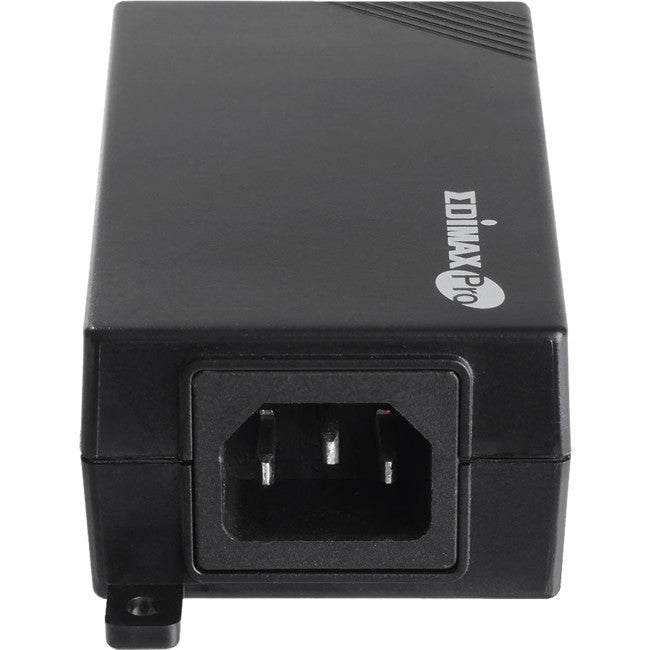

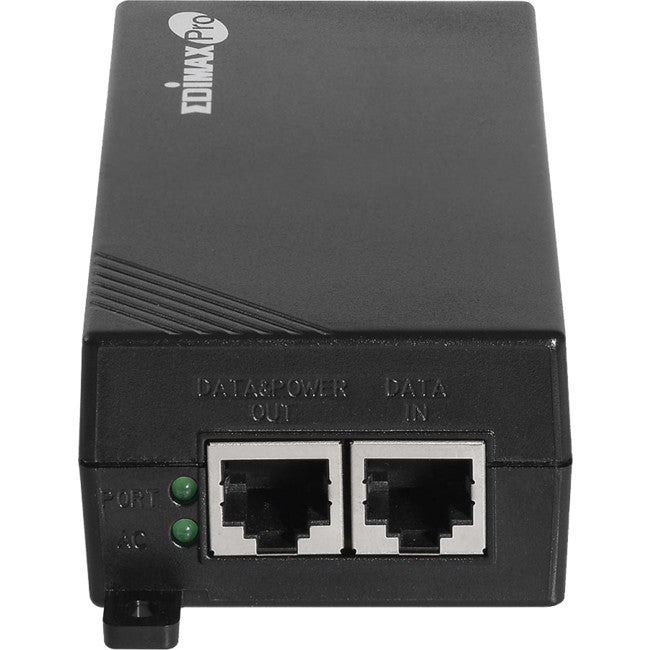

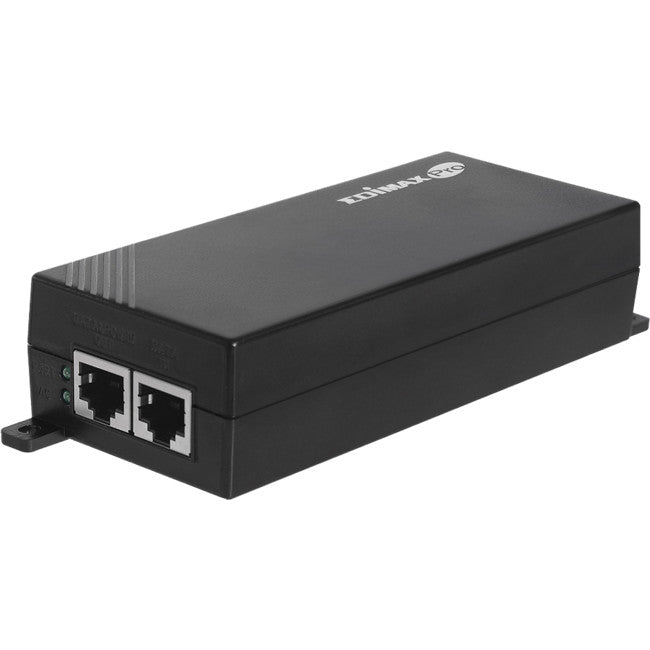

GP101IT GIGABIT POE+ INJECTOR 30W EDIMAX EDIMAX ED-GP-101IT

GIGABIT POE+ INJECTOR 30W

IEEE 802.3at/af Power over Ethernet Standard
Because of adding the capability of IEEE 802.3at/af Power over Ethernet to a non-PoE Ethernet switch or router, the GP-101IT can dire

ctly be connected to any IEEE 802.3at/af end-nodes such as PTZ (Pan, Tilt, Zoom) network cameras, PTZ speed dome, colour touch-screen Voice over IP (VoIP) telephones and multi-channel wireless LAN access points where the IEEE 802.3at/af in-line Power over Ethernet port is supported.

Higher Cost Efficiency and Easy Installation
The Power over Ethernet technology enables the Ethernet wireto carry both data and power. Thus, the GP-101IT reduces theneed for cable installation and eliminates the need for extension cords or electrical outlets on the wall, ceiling or any unreachable place. In all, it lowers the installationcosts and simplifies the deployment effort.

Flexible & Reliable Power Supply
Featuring PoE short circuit protection to safeguard network devices and protect against damage.

  • HARDWARE:
    • Ports: 1 Port RJ-45 10/100/1000Base-T Input Port: 1 Port RJ-45 10/100/1000Base-T PoE Output Port
    • LED Indicators: Power and AC
    • Power Input: 100-240V AC, 50-60 Hz, 0.6A
    • Power Consumption:30 Watts
    • Dimensions (L x W x H): 155 x 58 x 36 mm
    • Weight: 185g
  • POWER OVER ETHERNET:
    • Standard: IEEE802.3af and IEEE802.3at
    • Power Output: DC53V/0.55A
    • Pin Assignment: 1/2(+), 3/6(-) End-Span
  • ENVIRONMENT:
    • Temperature: Operating: 0 ~ 40? ; Storage: -40 ~ 70?
    • Humidity (Non-condensing): Operating: 10 ~ 90% ; Storage: 5 ~ 90%
  • STANDARDS COMPLIANCE:
    • Standards: IEEE 802.3 10BaseT Ethernet
      IEEE 802.3u 100BaseTX Fast Ethernet
      IEEE 802.3ab 1000BaseT Gigabit Ethernet
      IEEE 802.3af Power Over Ethernet (PoE)
      IEEE 802.3at Power Over Ethernet Plus (PoE+)
    • Certifications:FCC, CE
