GS5416PLC 16 PORT GIGA POE SMART SWITCH 330W SFP EDIMAX GS-5416PLC

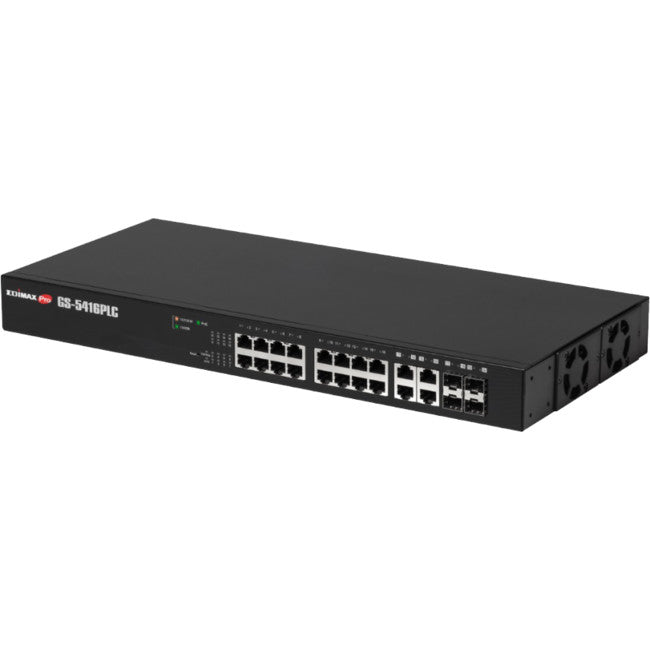

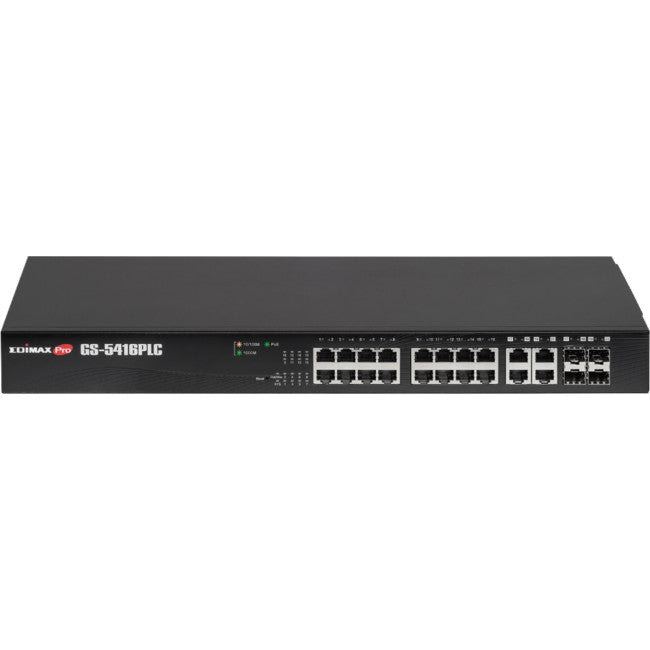

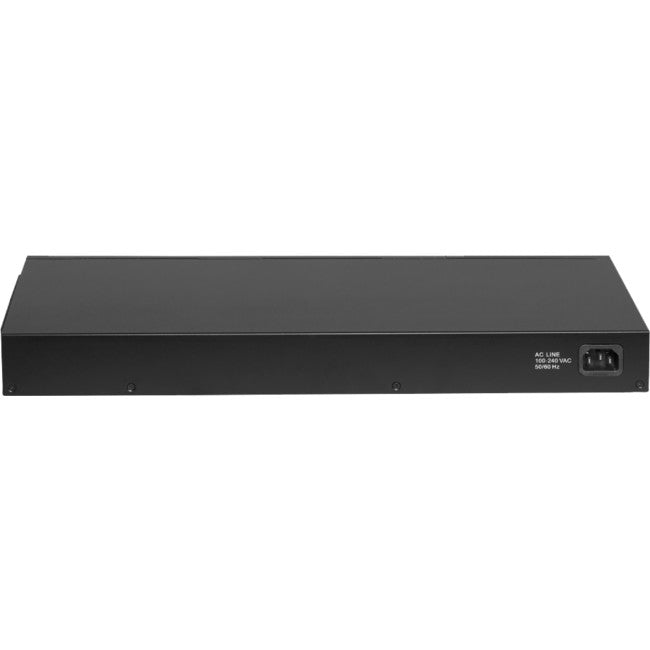

Edimax GS-5416PLC Long Range 16-Port Gigabit PoE+ Web Smart Switch with 4 RJ45/SFP Combo Ports

• 16 Gigabit Ethernet ports and four RJ45/SFP combo ports.
• IEEE 802.3af/at PoE compliant.
• Up to 30W per port (total power budget: 330W) for powering PoE-enabled devices.
• Auto-detection of powered devices (PD) and power consumption levels.
• PoE powered devices (PD) alive check to enhance the reliability of the network.

Cost Effective, Reliable, Scalable and Secure Switch Solution for SMB Networks

To increase the distance/speed of your network server and backbone connections.

The Edimax Pro GS-5416PLC smart switch comes with web-based user interface, 16 Gigabit PoE+ ports and 4 RJ45/SFP combo ports for high-speed Gigabit and long-range copper or optical connections. With smart features in SNMP v3, PoE PD Alive Check, Dual Firmware, Voice VLAN, DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk,IGMP v1/v2/v3 Snooping and Mirror, the smart switch providesa cost effective, reliable, scalable and secure switch solution for SMB networks. The Edimax-specific long range mode enables power and data transmission to up to 200 metersat a speed of 10Mbps, tailored for IP cameras and far away network device applications. The PoE also features auto detection and power backfeed protection to efficiently provide power and, at the same time, avoid damaging the PoE ports. The Edimax GS-5416PLC is the ideal solution to increase the distance/speed of your network server and backbone connections.

Gigabit High-Speed Connection

Complies with IEEE802.3/802.3u/802.3ab/802.3z Gigabit Ethernet Standards, the GS-5416PLC features 16 Gigabit Ethernet ports for high-speed, large file transfer and 4 SFPslots for long range optical fiber Gigabit Ethernet connections.

802.3at PoE with Auto Detection & Power Backfeed Protection

The GS-5416PLC features 24 IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30W of electricity per port and has a total power supply of 330W (can provide 280W for PD)to power any 802.3at or 802.3af compliant power device. With PoE detection capability, the GS-5416PLC is able to verify whether the connected device is IEEE 802.3at or 802.3af compliant. If a PoE device is not detected, only network data will be transmitted. Moreover, with the PoE power backfeed protection from the passive PoE injectors, the GS-5416PLC is able to avoid damaging the PoE ports.

PoE for Easy Installation and Better Cost Efficiency

Power over Ethernet technology enables the Ethernet cableto carry both data and power, reducing cable installation and eliminating the need for extension cords or electrical outlets on the walls and ceiling. The GS-5416PLC can effectively lower installation costs and simplify deploymenteffort. The GS-5416PLC can be used with different PoE products such as access points, IP cameras or VoIP devices and is an effective solution for network environments where power outlets are difficult to access.

PoE Powered Device Alive Check

Featuring PoE Powered Device (PD) alive check, the switchcan be configured to monitor real-time status of connected PDs by ping action (sending alive-checking packets). If a PDfails to response, the GS-5416PLC PoE Switch will reboot thePD, which enhances the reliability of the network and reduces administrator management burden.

Long Range PoE Distance Extension, up to 200 Meters

The long range mode provides extended power and data delivery distance to up to 200 meters while general Ethernetswitches have a distance restriction of 100 meters. The longrange mode operates on a per-port basis at 10Mbps full-duplex operation, ideal for devices such as IP cameras,IP phones and PoE-enabled IoT devices at a remote location.

Dual Firmware

The dual firmware feature allows switches to have two firmware in storage. You can denote one of these firmware asthe active one and the other firmware as the backup. If the active firmware faces problems, you can activate the backup firmware right away to reduce down time.

Voice VLAN

Voice VLAN is a special function of GS-5416PLC switch which allows network administrator to easily prioritize IP voice traffic from IP phone through the access port of switch to enhance VoIP service. Voice VLAN also provides QoSto VoIP, ensuring that the sound quality of an IP phone doesnot deteriorate when the IP voice traffic is sent unevenly.

DHCP Snooping

The network security feature of DHCP snooping enables theprevention of malicious or malformed DHCP traffic or the mitigation of security risks from rogue DHCP servers. The feature monitors DHCP messages received from untrusted devices connected to a switching device in the network and protects the integrity of legitimate DHCP server and its operations.

Smart Tools for Improved Network Efficiency and Security

The switch features smart and simple network monitoring tools that allow for improved network efficiency and security. The web-based interface management features include QoS (Quality of Service) bandwidth control for better traffic control, VLAN (Virtual LAN) for enhanced network security and multicast IGMP snooping v1/v2/v3 for streaming applications. For quick and easy setup, the web-based management integrates advanced management and security functions of Access Control List (ACL), CoS, STP, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror.

OPTIONAL ACCESSORY

• Compliant with IEEE 802.3z Gigabit Ethernet and FiberChannel standard
• Plug-and-Play & Hot Pluggable
• Supports single-mode or multi-mode fiber depends on the SFP modules
• Max. cable length: 550m to 30km depends on the SFP modules
• Industrial grade SFP modules with robust design for enhanced reliability
