USW-FLEX-MINI UNIFI 5 PORT GIGA SWITCH L2 POWERED BY POE AND USB-C UBIQUITI USW-FLEX-MINI

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

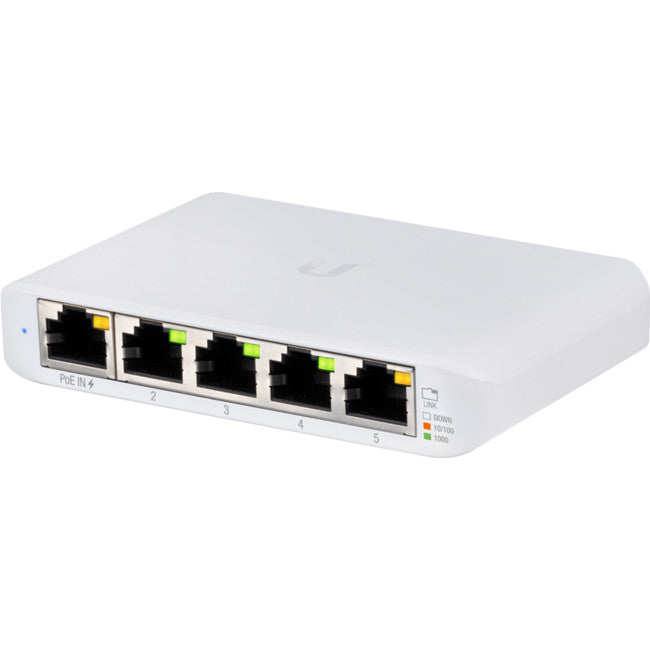

USW Flex Mini 5-Port Managed Gigabit PoE Switch

Build and expand your network with the UniFi® Switch,part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1Gigabit links to your devices. The 5-Port managed Gigabit Ethernet Switch can be powered by 802.3af/at PoE switch, PoEAdapter (Model USW-FLEX-MINI-NPS), or 5V, 1A USB-C power adapter (Model USW-FLEX-MINI-PS).

Power Options
Power up with USB Type-C power adapter or with802.3af/at PoE Adapter(Sold Separately), or 802.3af/at PoE switch via Ethernet in port 1.

Specifications

USW-Flex-Mini

Dimensions

107.16 x 70.15 x 21.17 mm
(4.22 x 2.76 x 0.83")

Weight

150 g (5.29 oz)

Networking Interfaces

(5) 10/100/1000 Mbps RJ45 Ports

PoE In Interface

802.3af/at PoE (Pins 1, 2+; 3, 6-)

Max. Power Consumption

2.5W

Power Method

USB Type C, 5V
802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)

Power Supply

5V, 1A Power Adapter*

Voltage Range

USB Type C 4.7 - 5.2VDC
802.3af/at PoE 44 - 57VDC

LEDs

System Status
RJ45 Data Ports Link/Speed/Activity

ESD/EMP Protection

± 16kV Air, ± 12kV Contact

Operating Temperature

-5 to 45°C (23 to 113° F)

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

* Included only in the single-pack of the USW-Flex-Mini.
