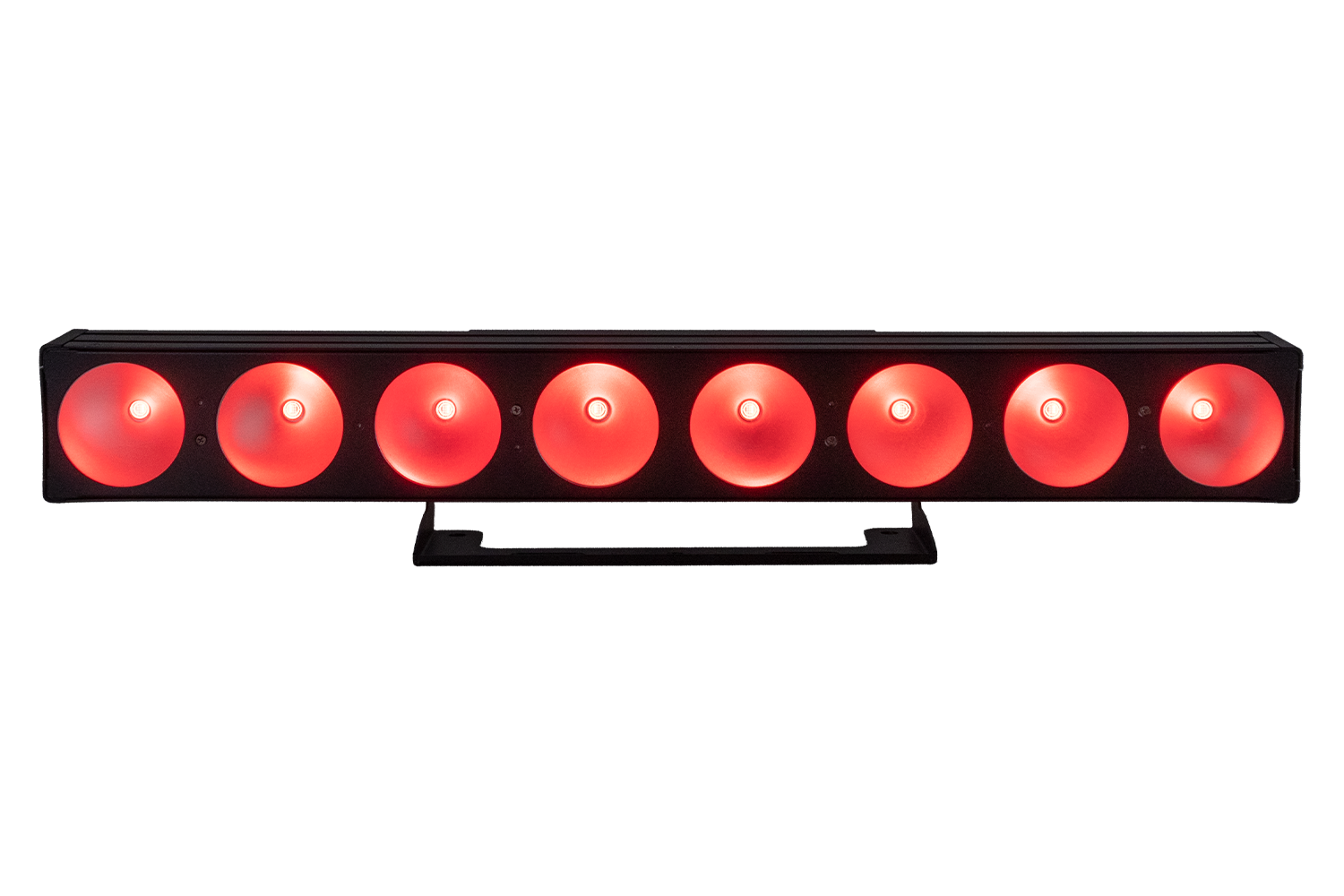

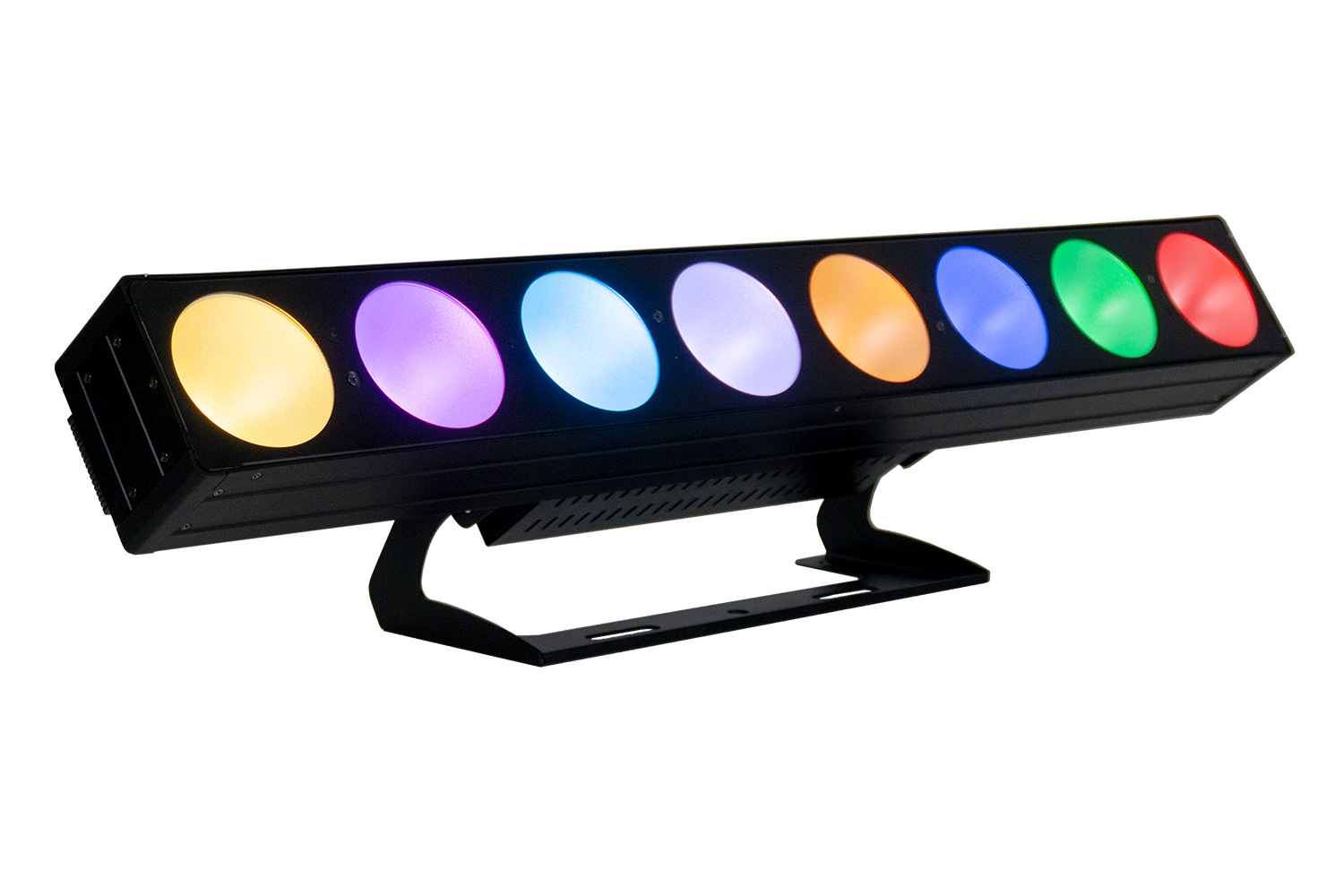

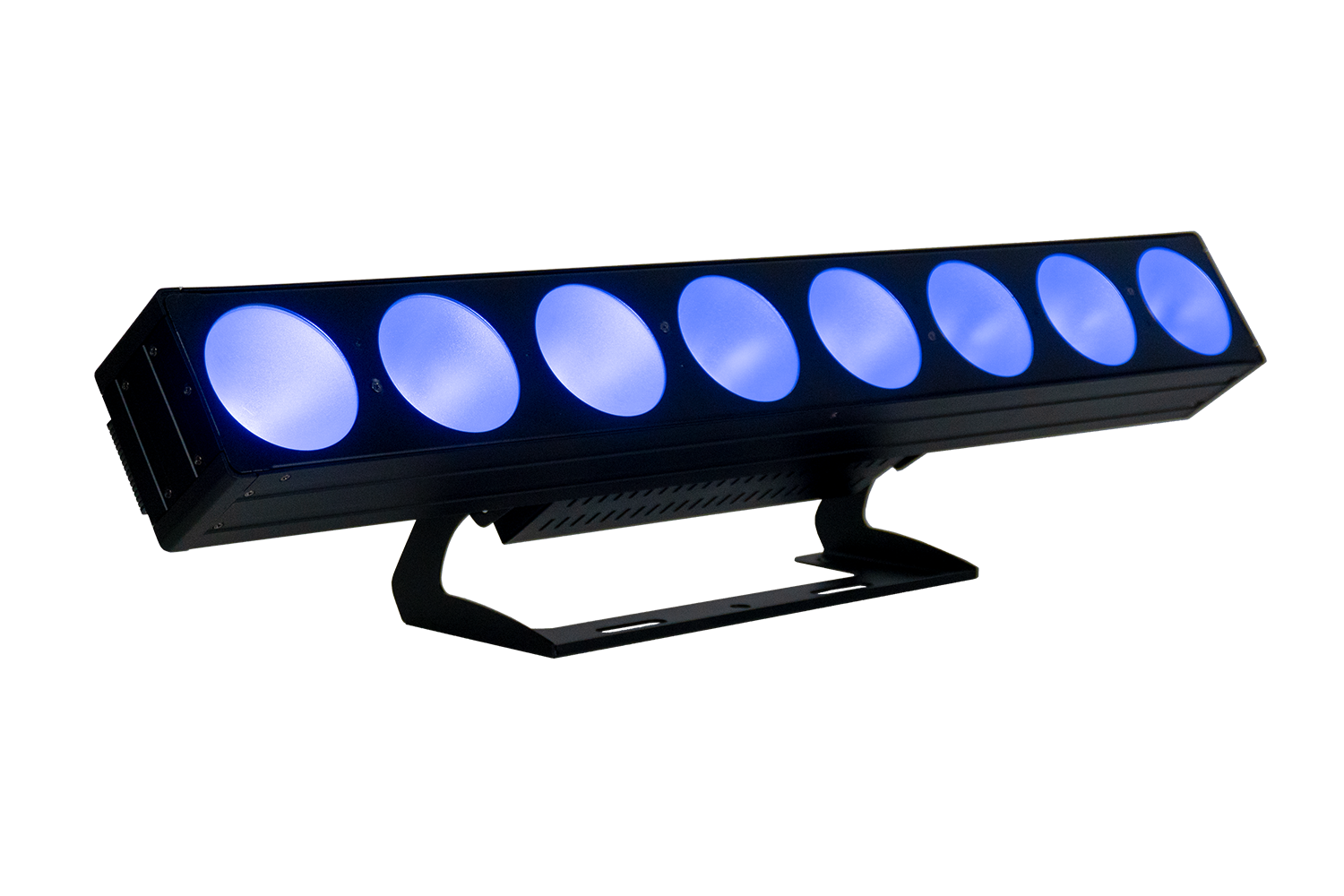

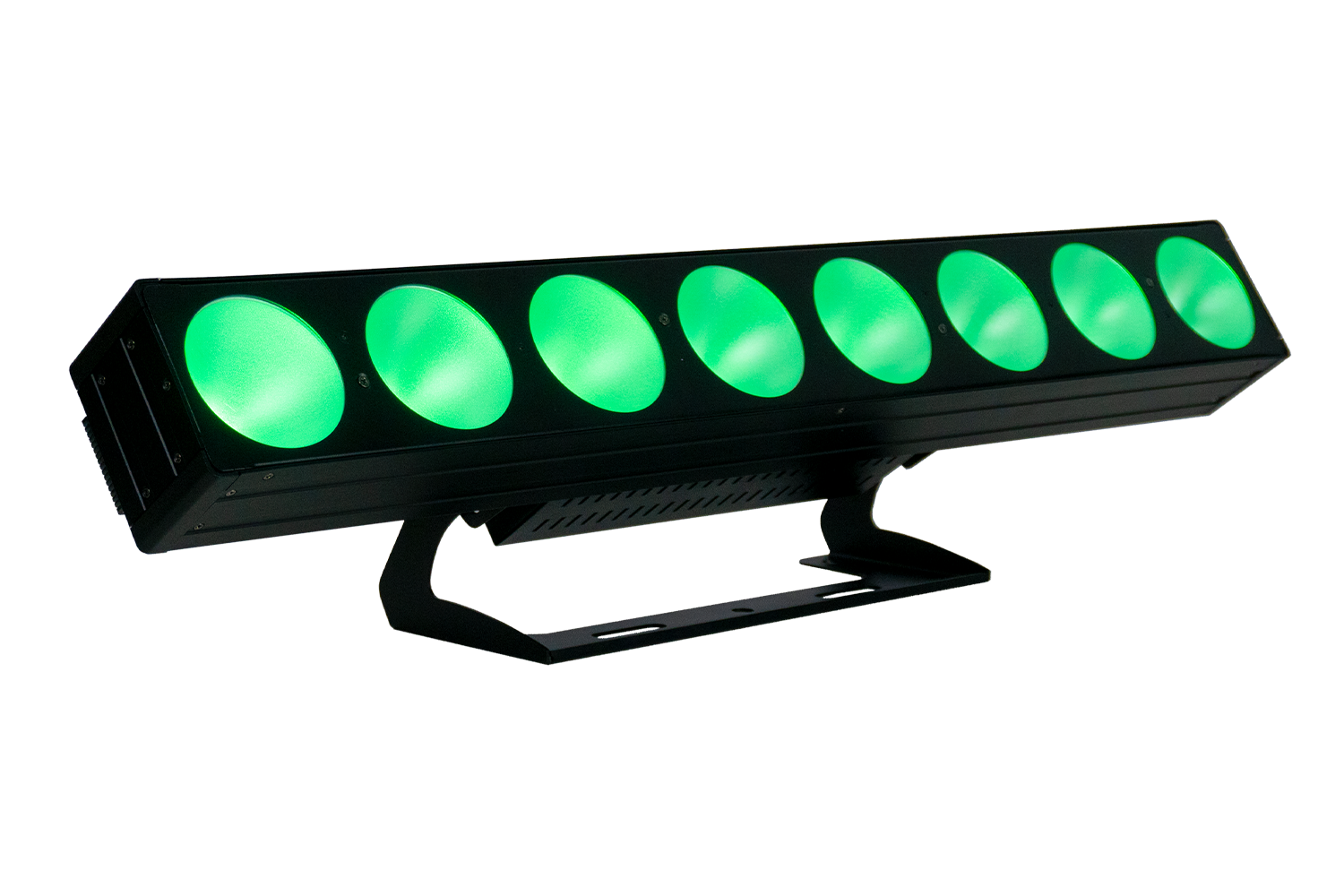

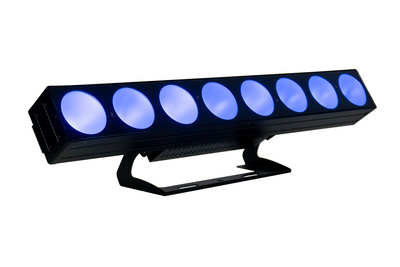

Event Lighting PAN8X1X30 - 8 x 30W COB RGB LED Pixel Control Panel

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

The Event Lighting PAN series feature bright 30W RGB COB LEDs with a wide beam angle, making them ideal for wash and cyclorama duties. The aluminium housing is fanless, making them silent and virtually maintenance free.

    Photometrics

    • Light Source: 8x 30 W RGB COB LEDs
    • Beam Angle: 60°

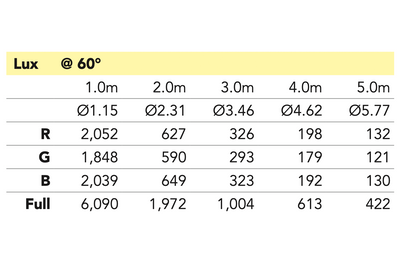

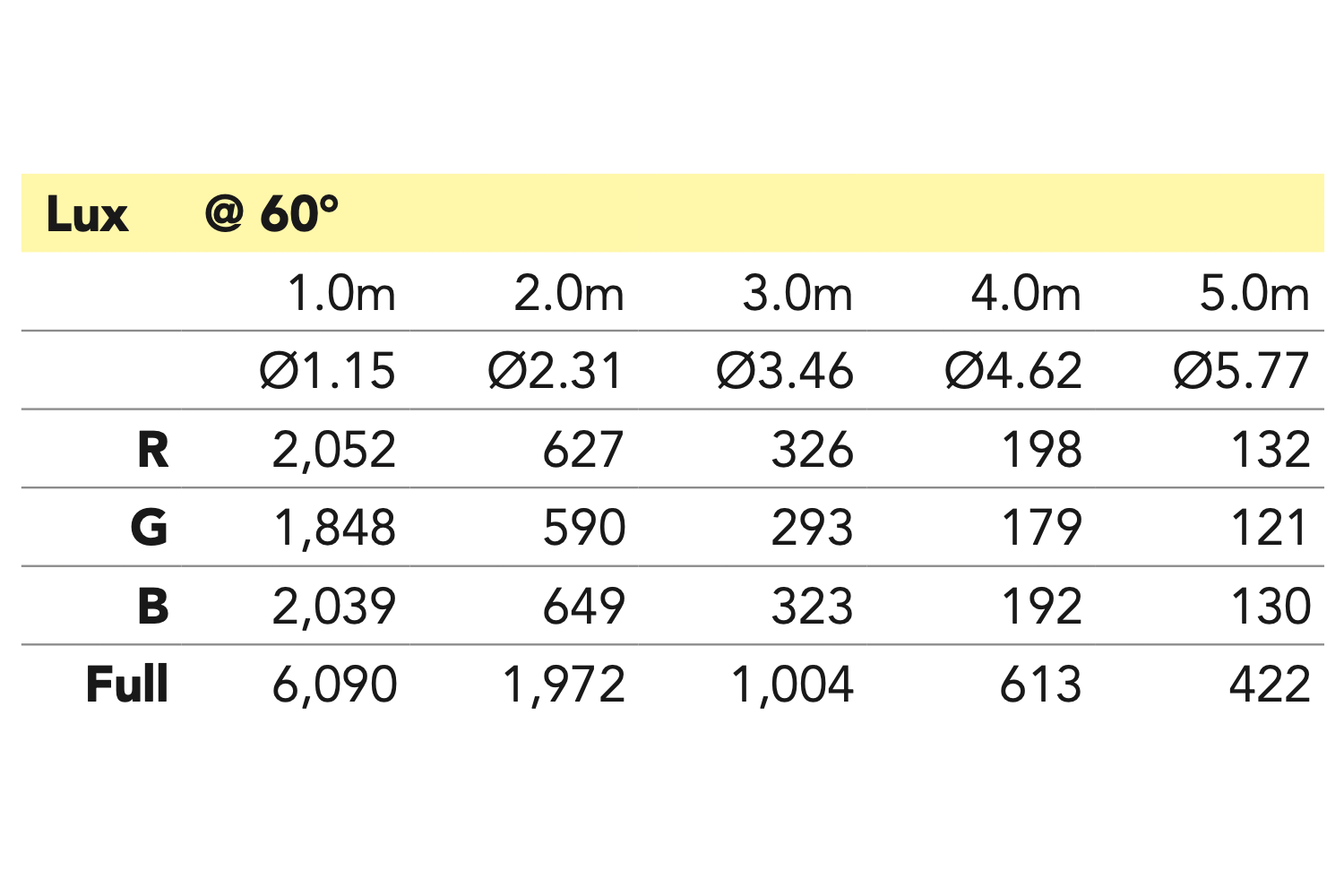

    • Output: 1,972 lux @ 2 m RGB full on
    • PWM: 11,700 Hz
    • LED Life: 50,000 hours

    Effects

    • Dimming: 8-bit + 4x 16-bit Dimming Curves
    • Strobe: 1~30 Hz

    Power

    • Input Voltages: 100~240 V AC, 50/60 Hz, 200 W
    • Power Connection: IEC in/out

    Control

    • Operational Modes:  DMX, manual, auto, sound active, master/slave, multi fixture chase

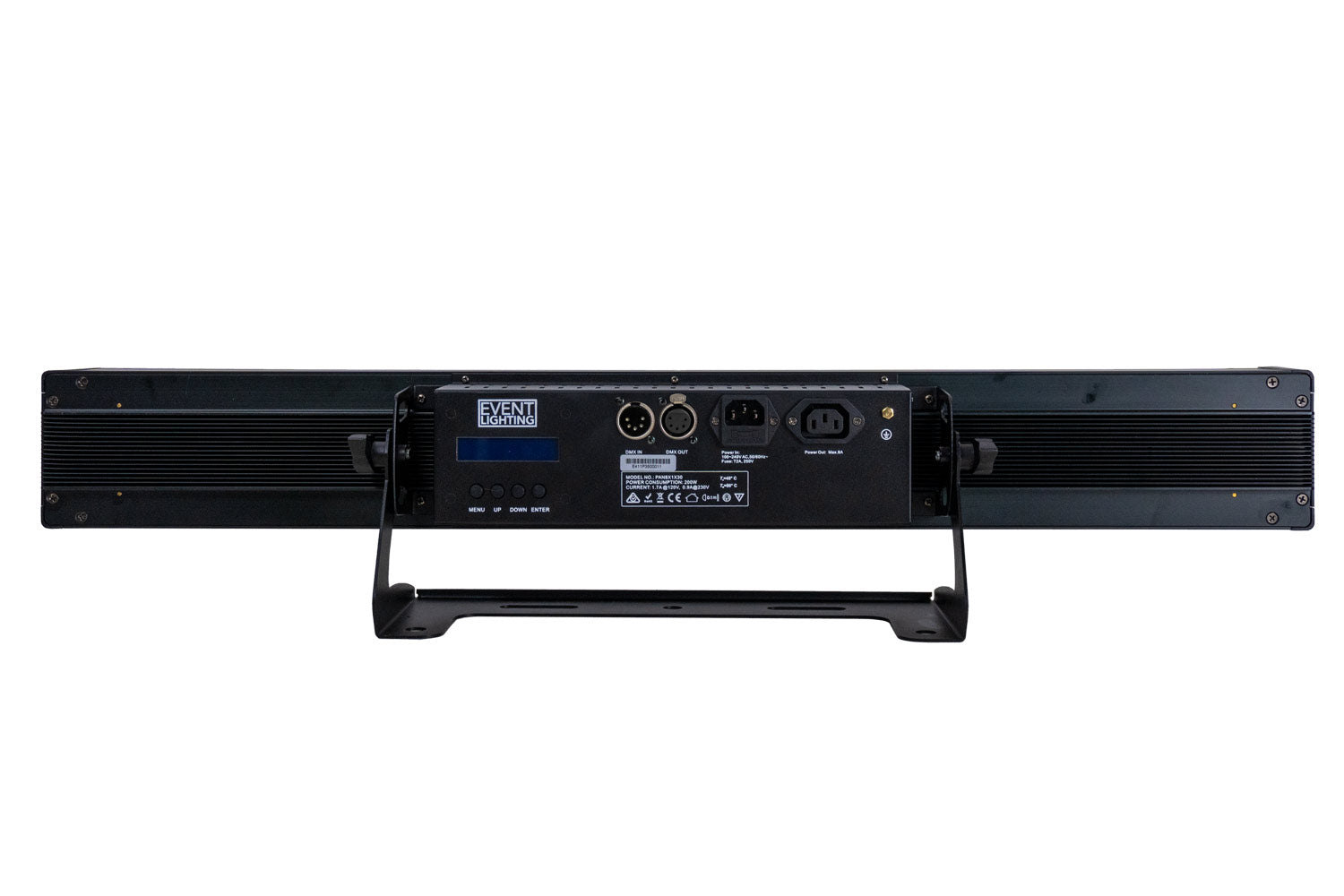

    • Display: 4-button LCD control panel
    • Control Protocol: DMX512
    • DMX Channels: 3 / 5 / 9 / 24 / 29
    • Control Interface: 3-pin XLR (optional: 5-pin XLR)
    • Software Upgrade via DMX: Yes

    Housing

    • Housing Materials: Aluminium, matte black finish
    • Cooling: Fanless Cooling

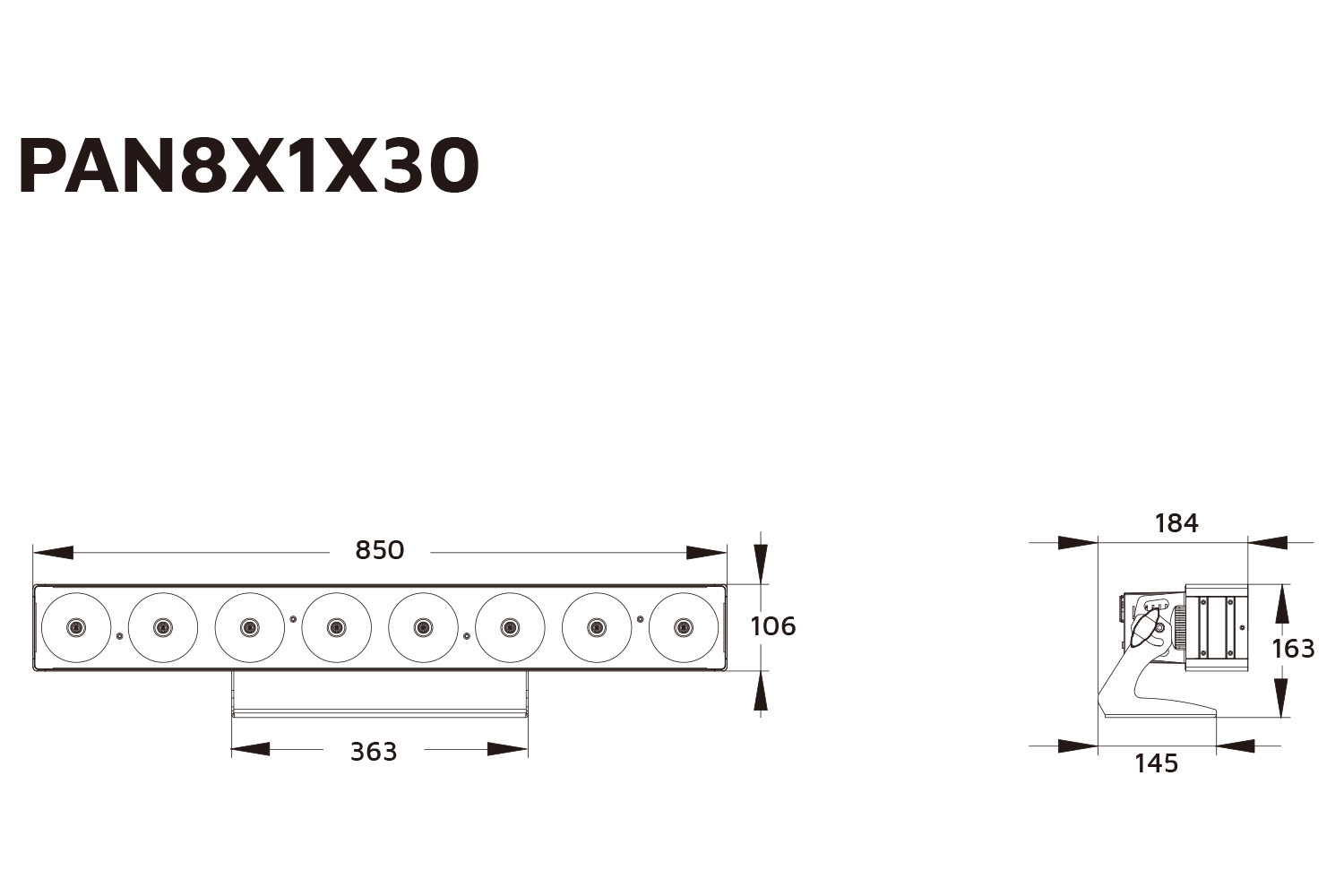

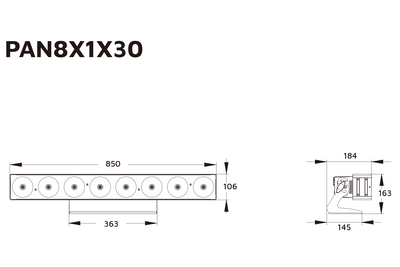

    • Dimension: 850 x 184 x 163 mm
    • Net Weight: 6.2 kg

    Product Specification Sheet Download

    User Manual Ver2.0 Download
