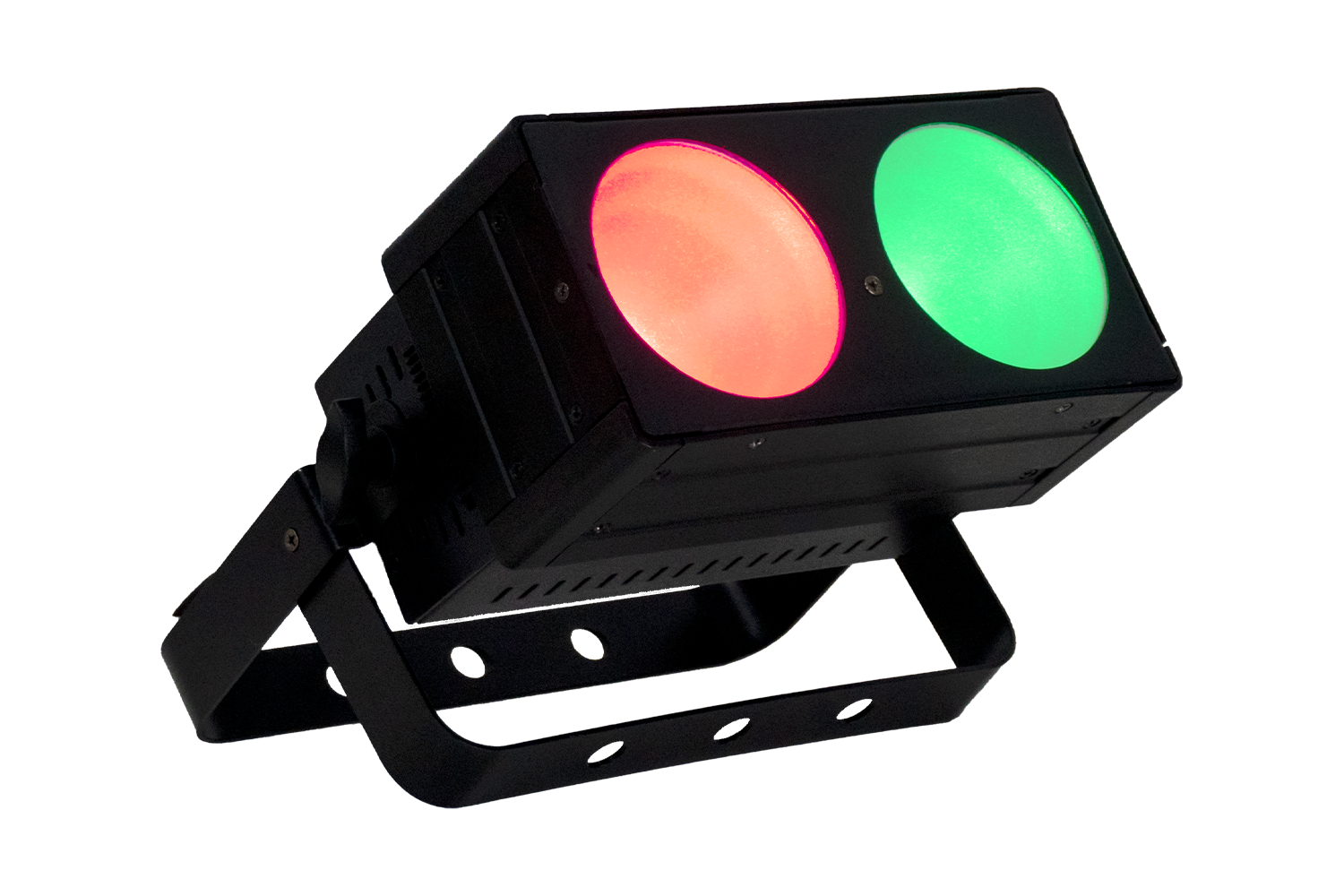

Event Lighting PAN2X1X30 - 2x 30 W COB RGB Pixel Control Panel

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

The Event Lighting PAN series feature bright 30W RGB COB LEDs with a wide beam angle, making them ideal for wash and cyclorama duties. The aluminium housing is fanless, making them silent and virtually maintenance-free.


  • Light Source: 2x 30W RGB COB LEDs
  • Beam Angle: 60°

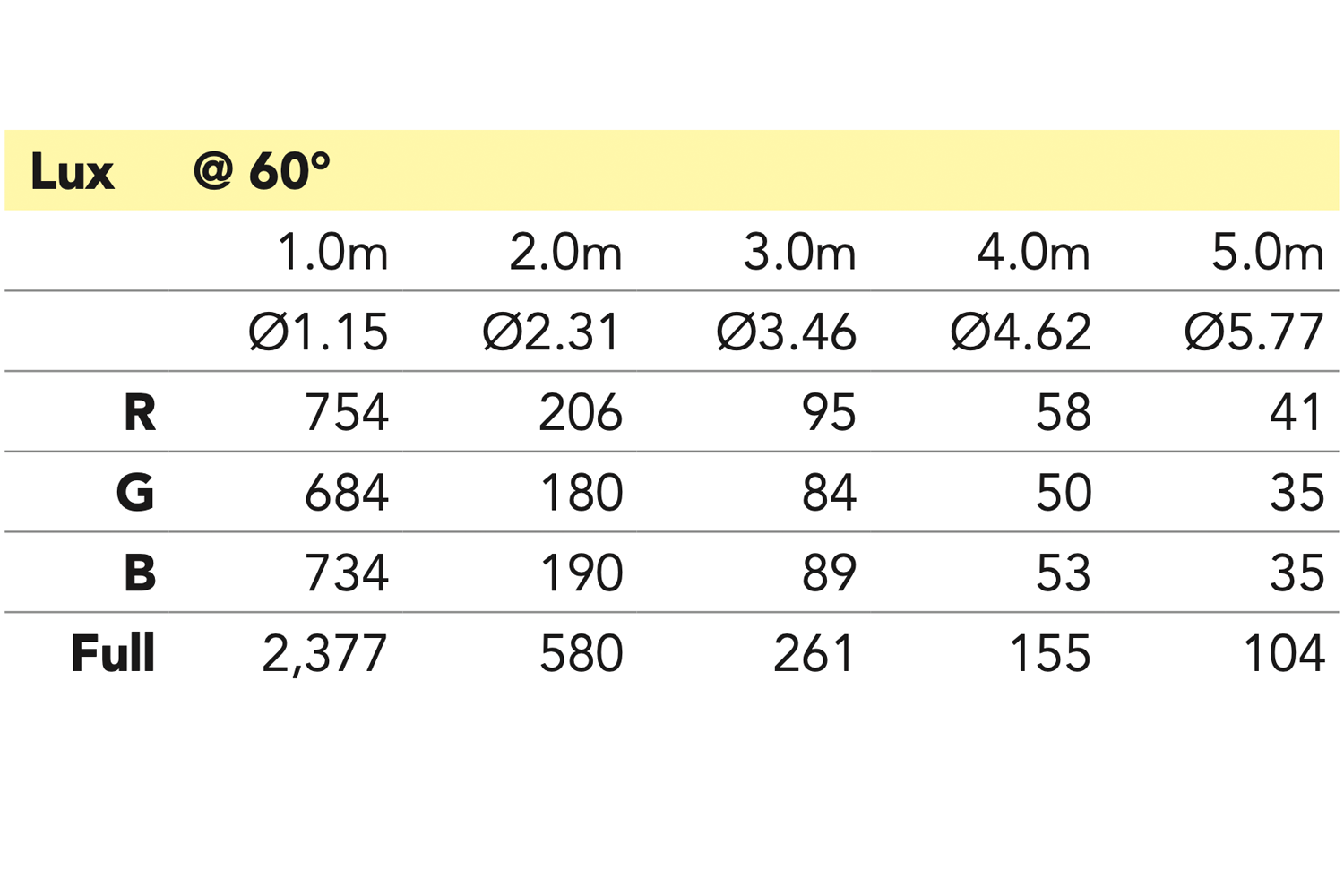

  • Output: 580 lux @ 2 m RGB full on
  • PWM: 11,700 Hz
  • LED Lifespan: 50,000 hours


  • Dimming: 8-bit + 4x 16-bit Dimming Curves
  • Strobe: 1~30 Hz


  • Input Voltages: 100~240V AC, 50/60Hz, 50 W
  • Power Connection: IEC in


  • Operational Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase

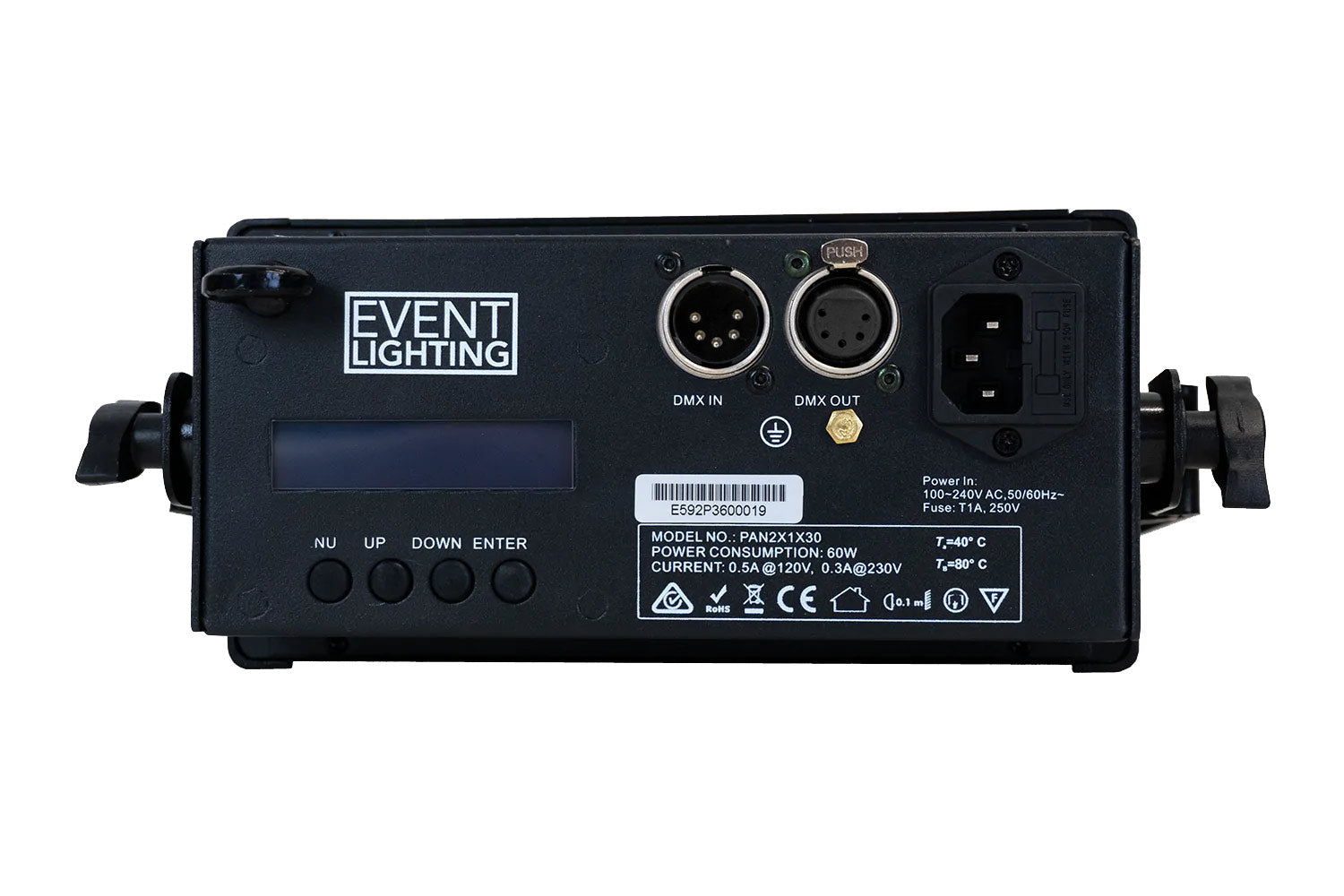

  • Display: 4-button LCD control panel
  • Control Protocol: DMX512
  • DMX Channels: 3 / 5 / 6 / 9 / 11
  • Control Interface: 3-pin XLR (optional: 5-pin XLR)
  • Software Upgrade via DMX: Yes


  • Housing Materials: Aluminium Housing, matte black
  • Cooling: Fanless Cooling

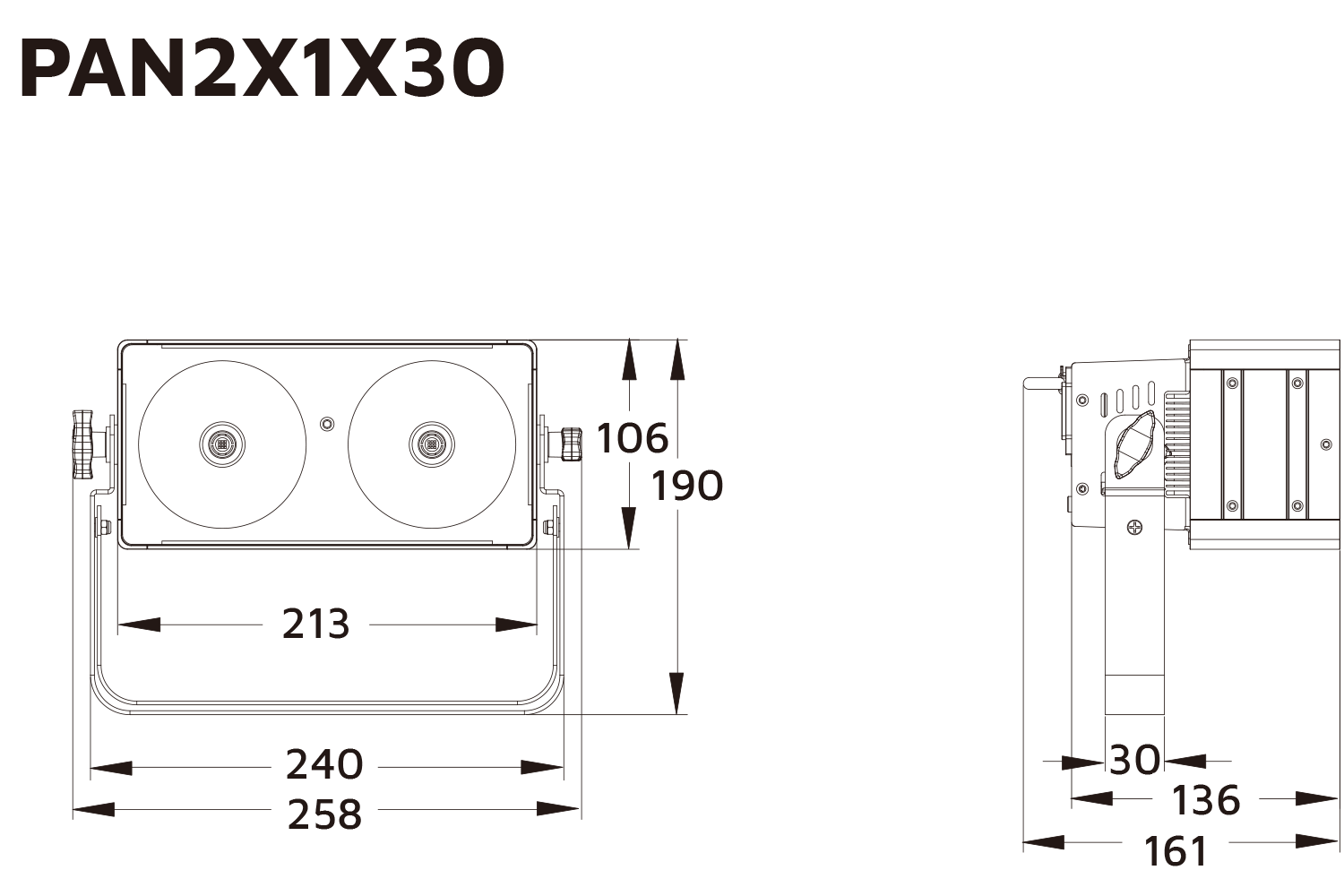

  • Dimension: 258 x 161 x 190 mm
  • Net Weight: 2.5 kg

Product Specification Sheet Download

User Manual Ver2.0 Download
