RLIR100 IR REPEATER SYSTEM RESI-LINX FOXTEL APPROVED RESI-LINX

$199.00

Overview

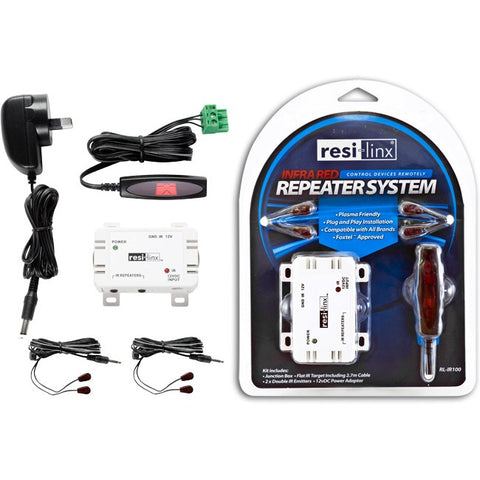

RL-IR100 – Resi-linx Basic DIY IR Kit

The resi-linx® RL-IR100 is a Plasma Friendly Hard Wired Infra-Red repeater kit for use in DIY &/or custom installations, to control an A/V device at a remote location (up to 2.7m).

All connections are plug & play, and the kit includes discrete Flat IR target, junction box, two double emitters & switch mode power supply.

The RL-IR100 Junction Box features built in LED to show acknowledgement of IR commands, and is compact and lightweight.

Attractively blister packaged for Point of Sale display.

Features

Plasma Friendly Hard Wired Infra-Red repeater kit for use in DIY &/or custom installation market to control an AV device at a remote location (up to 2.7m)
Foxtel Approved (Approval No: F30535) - works with all Foxtel and all other receivers
Includes discrete Flat IR target, junction box, two double emitters & switch mode power supply
Blister packed for POS display
Built in LED to show acknowledgement of IR commands
Junction Box is compact and lightweight.
All connections are plug & play, no requirements for cable stripping.
Includes adhesive backing to facilitate placement of both target and emitters
Target rejects interference from both plasma displays &/or from direct sunlight and fluorescent tube lights for accurate IR signal reception

Specifications

Frequency Range	20 kHz - 200 kHz
Power Input	12V DC / 500mA Switch Mode
Cable Requirement	Nil - included
Cable Length	2.7m
Max. Target Reception Distance	Up to 10 metres
Dimensions	70mm × 40mm × 23mm
Power Supply	Power Input: 110V to 240V AC Power Output: 12V DC / 500mA
Connections - Power Out	2.7m length with 2.1mm minijack socket

Flat Target
Junction Box
Two Double Emitters
Switch Mode P/S
