RLIR100 IR REPEATER SYSTEM RESI-LINX FOXTEL APPROVED RESI-LINX

$199.00

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Features}

RL-IR100 - Resi-linx Basic DIY IR Kit

The resi-linx ® RL-IR100 is a Plasma Friendly Hard Wired Infra-Red repeater kit for use in DIY &/or custom installations, to control an A/V device at a remotelocation (up to 2.7m).

All connections are plug & play, and the kit includes discrete Flat IR target, junction box, two double emitters & switch mode power supply.

The RL-IR100 Junction Box features built in LED to show acknowledgement of IR commands, and is compact and lightweight.

Attractively blister packaged for Point of Sale display.

Plasma Friendly Hard Wired Infra-Red repeater kit for use in DIY &/or custom installation market to control an AV device at a remote location (up to 2.7m)
Foxtel Approved (Approval No: F30535) - works with all Foxtel and all other receivers
Includes discrete Flat IR target, junction box, two double emitters & switch mode power supply
Blister packed for POS display
Built in LED to show acknowledgement of IR commands
Junction Box is compact and lightweight.
All connections are plug & play, no requirements for cable stripping.
Includes adhesive backing to facilitate placement of both target and emitters
Target rejects interference from both plasma displays &/or from direct sunlight and fluorescent tube lights for accurate IR signal reception

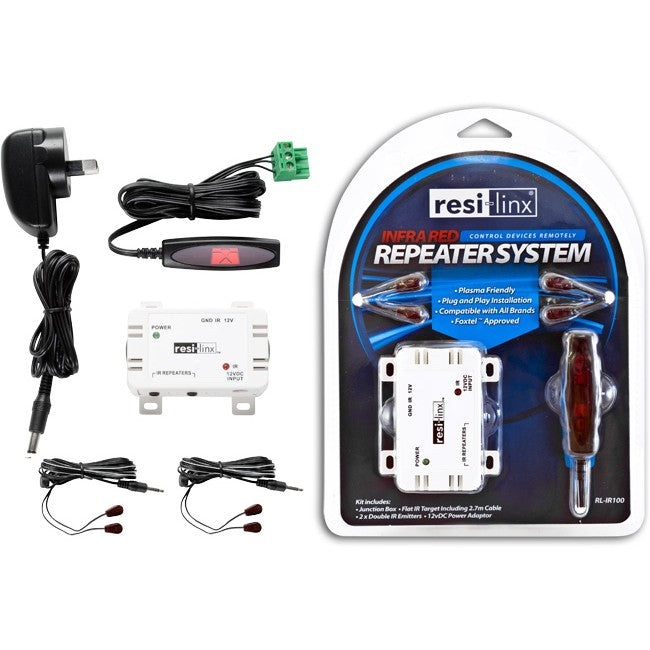

{tab Contents}

Flat Target
Junction Box
Two Double Emitters
Switch Mode P/S

{tab Specifications}

Frequency Range 20 kHz - 200 kHz
Power Input 12V DC 500mA Switch Mode
Cable Requirement Nil - included
Cable Length (m) 2.7
Max. Target Reception Distance Up to 10 metres
Size (mm) body 70 x 40 x 23
Power Supply:
- Power Input 110 - 240V AC
- Power Output 12V DC - 500mA
Connection - Power Out: 2.7m length with 2.1mm minijack socket
