PRO1452KB IR EXTENDER OVER HDMI2.0 KIT W/ 2 EYE EMITTER 18Gbps HDMI PRO2 A-1452KB

Using the existing HDMI cable to carry the IR signal from one room to the other to avoid more of IR extender or repeater or the cabling.
The kit consists of two short HDMI adaptor leads that fit on each end of your existing HDMI cable. Each adaptor lead has a 3.5mm jack into which you plug the IR receiver or transmitter. The IR repeater goes to the source side and IRtransmitter goes to the TV or display side.
With the HDMI version 2.0, supports 18Gbps, you are not downgrading your existing setup.

FEATURES

• Compatible with Foxtel IQ boxes;
• HDMI 2.0 version, 18Gbps speed, backward compatible;
• Dual-band IR;
• Easy to use, won?t interfere with HDMI CEC like some of the others on the market
• Control up to 4 devices via IR using the existing HDMI cable. (optional 4 eye IR emitter required);
• 10M IR receiver distance;
• Non-directional, each side can plug-in receiver or emitter.

SPECIFICATIONS

• HDMI version: 2.0
• Full band receive frequency range: 20 kHz to 60 kHz
• Full band transmit frequencies: 20 kHz to 60 kHz
• Range: 10 meters @ 38 kHz
• Range: 10 meters @ 56 kHz
• IR receiver cable length: 1.5 meters
• IR emitter cable length: 3 meters
• Connector Type: 1/8” (3.5mm) TRS mini plug

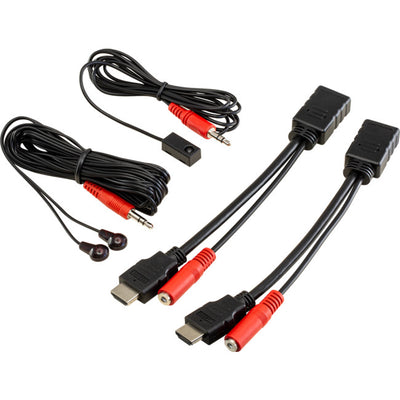

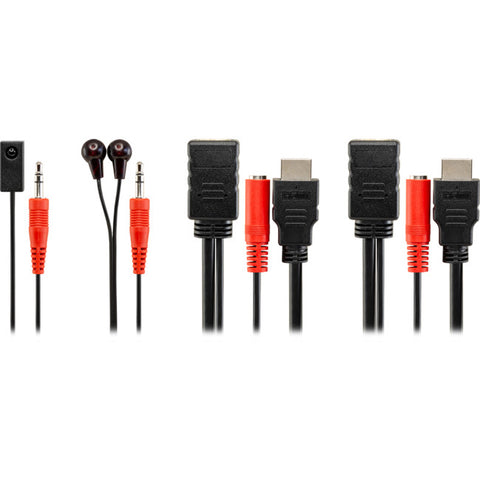

WHAT IS IN THE BOX?

• IR Receiver x 1
• 2 Eye IR emitter x 1
• HDMI Adapter lead x 2
• User manual x 1

NOTES

The IR receiver and emitter can easily be extended using standard 3.5mm audio extension cables.
1 of 2 eye IR Emitter included, additional IR emitters are required to operate extra devices.
