$189.00

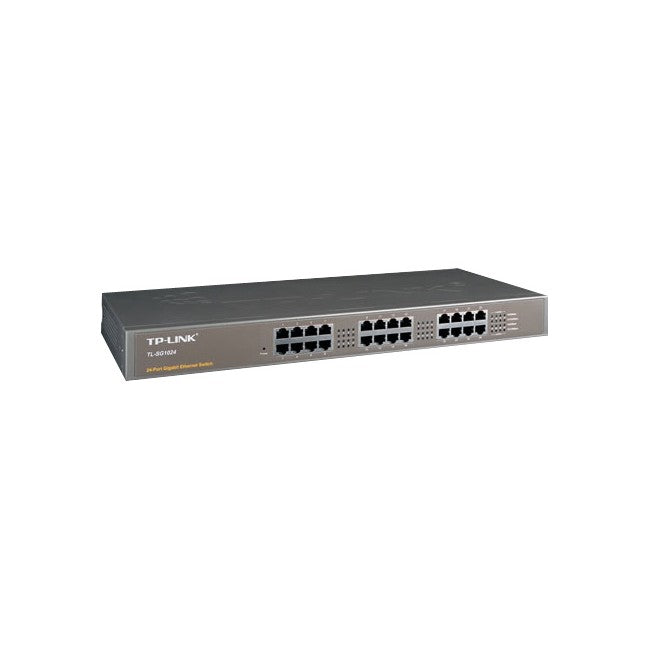

The TL-SG1024 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of Offices and workgroupnetworks.
Standards and Protocols |
IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP
|
Basic Function | Wire-speed Performance |
MAC Address Auto-Learning andAuto-aging | |
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode | |
Backbound Bandwidth | 48Gbps |
MAC Address Table | 8k |
Forwarding Rate |
10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port
|
Transmission Method | Store-and-Forward |
Ports | 24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
Network Media |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
|
LED Indicators | Power, Link/Act |
Safety & Emission | FCC, CE |
Dimensions (W*D*H) | 17.3*7.1*1.7 in. (440*180*44 mm) |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Power | 100-240VAC, 50/60Hz |
