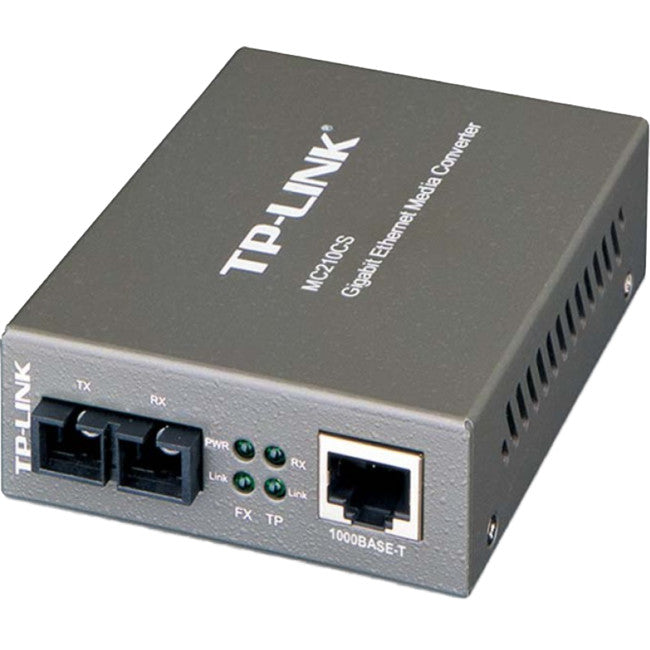

MC210CS GIGABIT ETHERNET MEDIA CONVERT TP-LINK TP-LINK MC210CS

$39.00

MC210CS Gigabit Single-Mode Media Converter

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cableutilising the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19″ system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.

Complies with IEEE 802.3ab and IEEE 802.3z
Provides switch configuration of Force /Auto transfer mode for FX port
Extends fiber distance up to 15km

Features

Works at 1000Mbps in Full-Duplex mode for both TX portand FX port
Supports auto MID/MID-X for TX port
Link Fault Passthrough and Far End Fault minimises the loss caused by link failure timely
Provides switch configuration of Force / Auto transfer mode for FX port
Extends fiber distance up to 15km
Easy-to-view LED indicators provide status to monitor network activity easily
External power supply

Specifications

Standards and Protocols	IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function	Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 15km
Ports	1 × 1000M SC/UPC port 1 × 1000M RJ45 port (Auto MDI/MDIX)
Wave Length	1310nm
Network Media 1000BASE-FX	Single-mode Fiber
Network Media 1000BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m)
LED Indicators	PWR, LINK, RX
Dimensions (W×D×H)	94.5mm × 73.0mm × 27.0mm (3.7″ × 2.9″ × 1.1″)
Power Supply	External Power Adapter
Max Power Consumption	5.5W
Safety & Emission	FCC, CE, RoHS
Environment	Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: −40°C ~ 70°C (−40°F ~ 158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
