{tab Features}

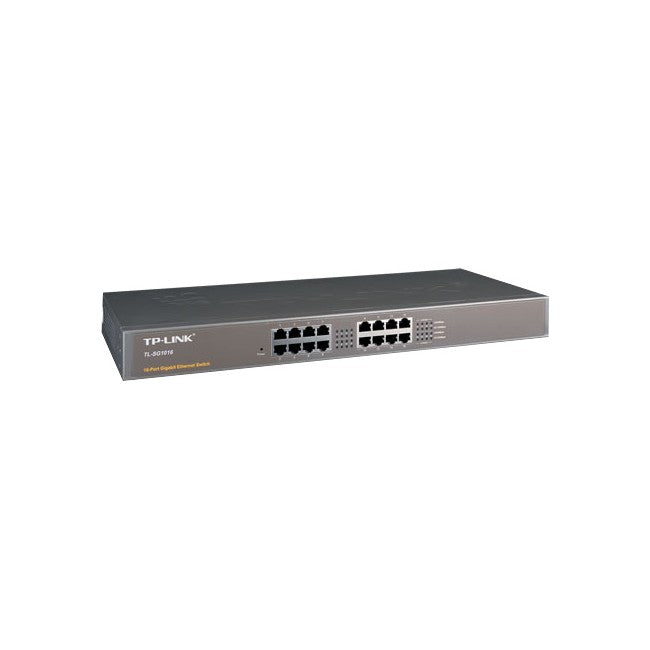

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless andstandard upgrade to improve old network to 1000Mbps network.All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material canbe recycled, making it an eco-friendly solution for your business network.
This new generation TL-SG1016 Gigabit Switch featuresthe latest innovative energy-efficient technologies that cangreatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossovercables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
{tab Specifications}
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
Interface | 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
Fan Quantity | Fanless |
Power Supply | 100-240VAC, 50/60Hz |
Power Consumption | Maximum: 9.26W (220V/50Hz) |
Dimensions ( W x D x H ) | 17.3*7.1*1.7 in. (440*180*44 mm) |
PERFORMANCE | |
---|---|
Switching Capacity | 32Gbps |
Packet Forwarding Rate | 23.8Mpps |
MAC Address Table | 8K |
Jumbo Frame | 10KB |
QoS | 802.1p/DSCP QoS* *Only for V12 and later version |
Green Technology | Yes |
Transfer Method | Store-and-Forward |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | 16-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~70°C (-40°F~158°F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
Warranty | Limited 3-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
