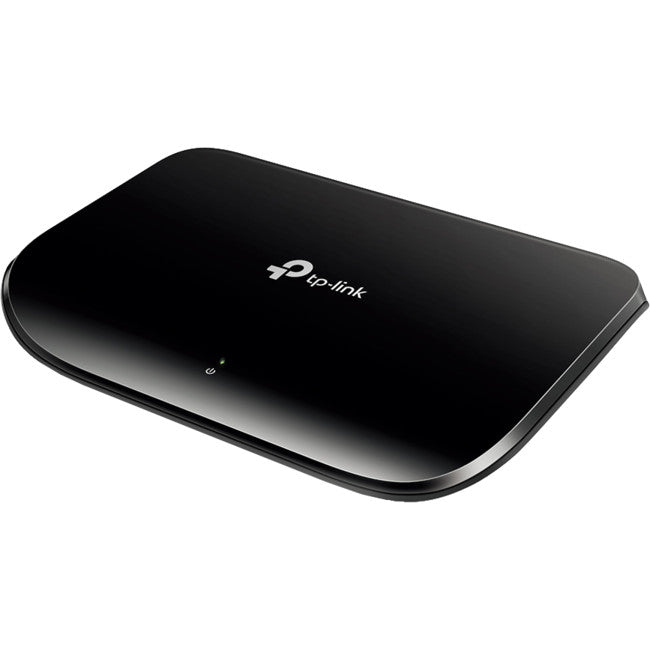

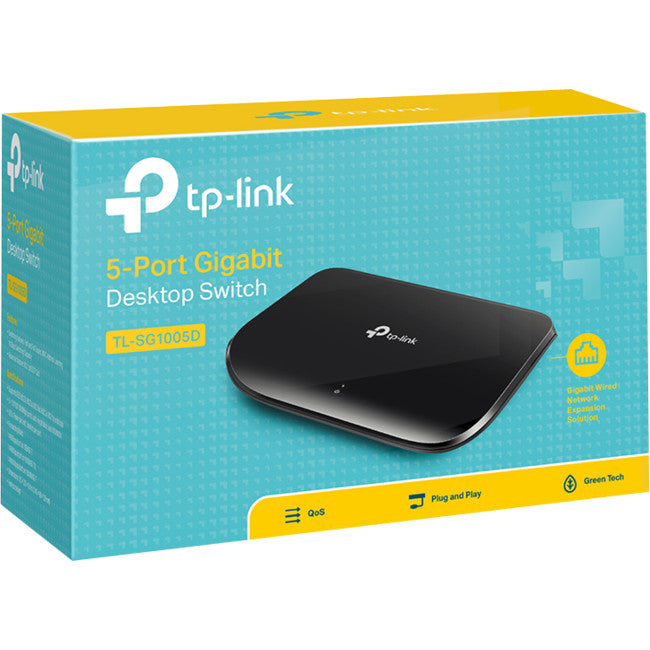

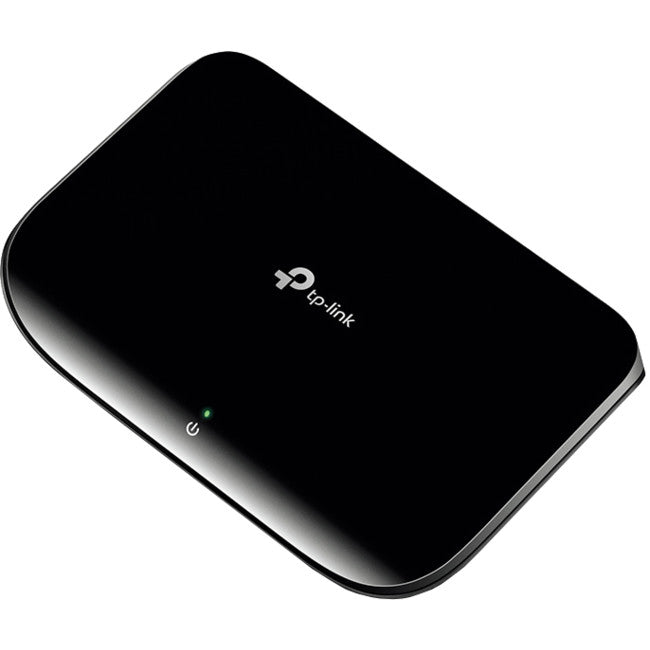

TLSG1005D 5 PORT ETHERNET GIGABIT SWITCH WITH 10/100/1000M MINI DESKTOP TP-LINK TL-SG1005D

TLSG1005D 5 PORT ETHERNET GIGABIT SWITCH WITH 10/100/1000M MINI DESKTOP TP-LINK TL-SG1005D

$19.00

TLSG1005D TP-LINK 5-port 10/100/1000M Gigabit Ethernet Desktop Switch

Green Ethernet technology, saves power and cost. 5 × 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto-MDI/MDIX)

The TL-SG1005D 5-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.

TL-SG1005D adopts Green Ethernet technology. It can automatically power down ports that have no link, and budget power output for different cable length. With Green Ethernet technology, TL-SG1005D can help you save power and network cost.

Features

Adopts Green Ethernet technology, saving power and cost
Supports IEEE 802.3x flow control for Full-Duplex mode and backpressure for Half-Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Supports MAC address auto-learning and auto-aging
Plastic case, desktop or wall-mounting design
External power adapter supply

SPECIFICATIONS

Standards and Protocols	IEEE802.3, 802.3u, 802.3ab,802.3x CSMA/CD, TCP/IP
Basic Function	Wire-speed Performance MAC Address Auto-Learning and Auto-aging IEEE802.3x flow control forFull-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth	10Gbps
MAC Address Table	1k
Forwarding Rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port
Transmission Method	Store-and-Forward

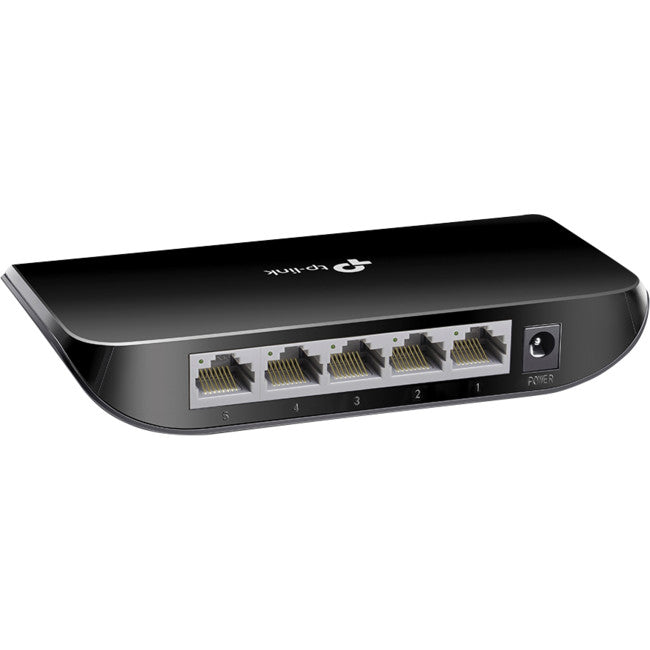

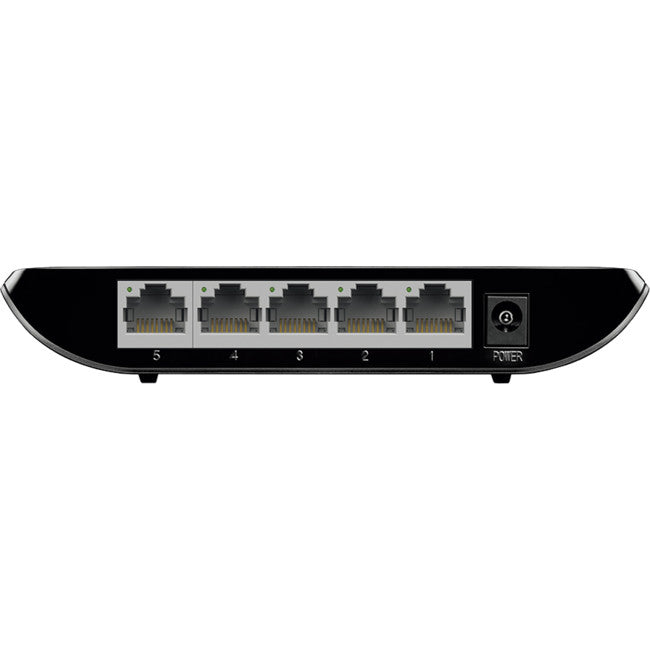

Ports	5 × 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators	Power, Link/Act (100m, 1000m)
Safety & Emission	FCC, CE
Dimensions (W×D×H)	165mm × 108mm × 28mm (6.5″ × 4.3″ × 1.1″)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: −40°C~70°C (−40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Power	External Power Adapter (Output: 9V DC / 0.6A)
