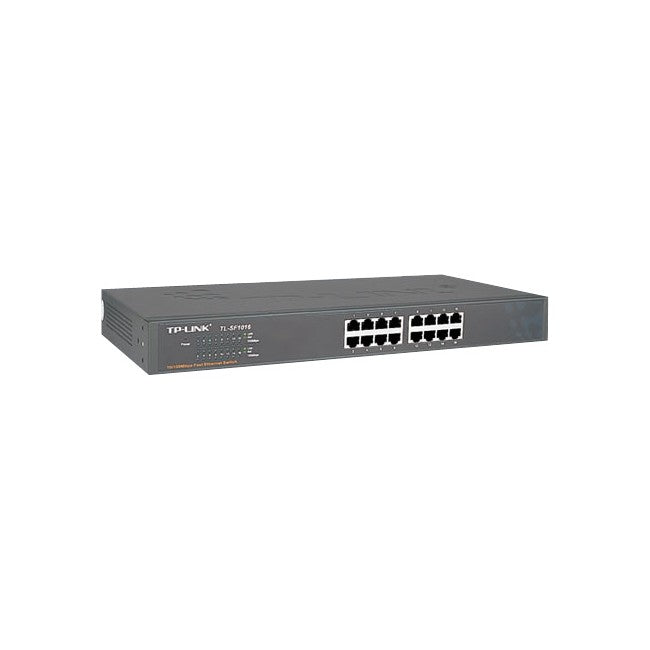

TLSF1016DS 16 PORT ETHERNET SWITCH / HUB RACK MOUNT 10/100M TP-LINK TP-LINK TL-SF1016DS

$64.00

Overview

TL-SF1016 TP-LINK 16-port Unmanaged 10/100M Rackmount Switch

The TL-SF1016 16-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. The rack-mount size metal case design combined witha safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment.

The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without a traditional hub’s collision phenomenon downgrading the performance.

All ports can be the uplink (cascade) port which is provided to link to another switch for more ports expansion. Easy read LED indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and rack-mount.

FEATURES

16 × 10/100M RJ45 ports.
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode.
Supports MAC address auto-learning and auto-aging (MDI/MDIX).
LED indicators for monitoring power, link, activity, 100Mbps.
Standard 19″ rack-mountable steel case.
Internal universal power supply.

Specifications

SPECIFICATIONS

Standards and Protocols	IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Functions	Wire-speed Performance MAC Address Auto-Learning and Auto-aging IEEE802.3x flow control forFull-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth	3.2Gbps
MAC Address Table	8k
Forwarding Rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port
Transmission Method	Store-and-Forward
Ports	16 × 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators	Power, Link/Act, 100Mbps
Safety & Emission	FCC, CE
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	−40°C~70°C (−40°F~158°F)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
Dimensions (W×D×H)	294mm × 180mm × 44mm (11.6″ × 7.1″ × 1.7″)
Power	100-240V AC, 50/60Hz
