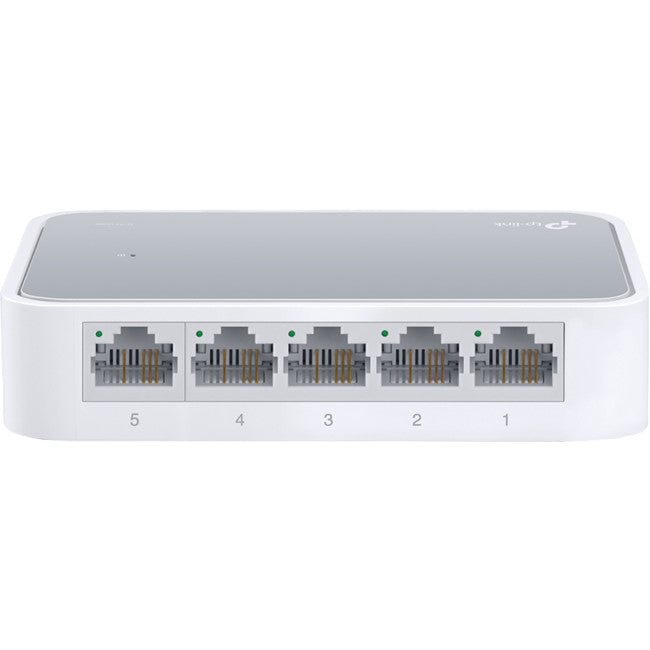

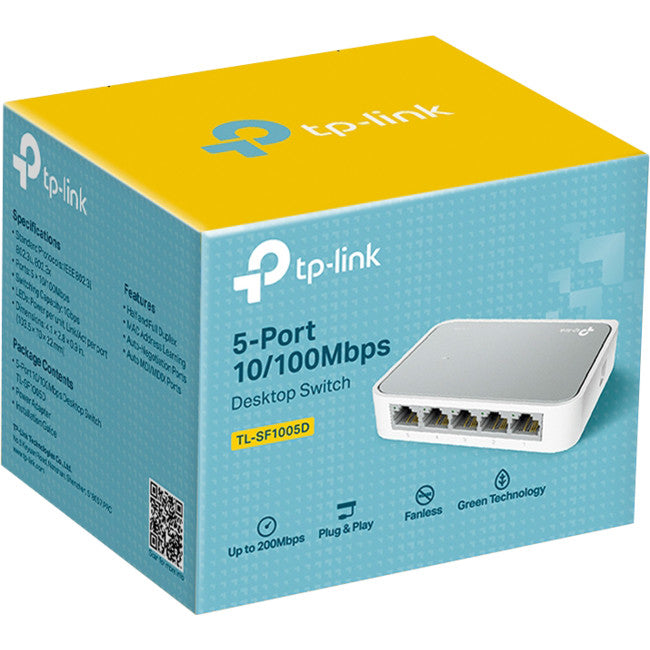

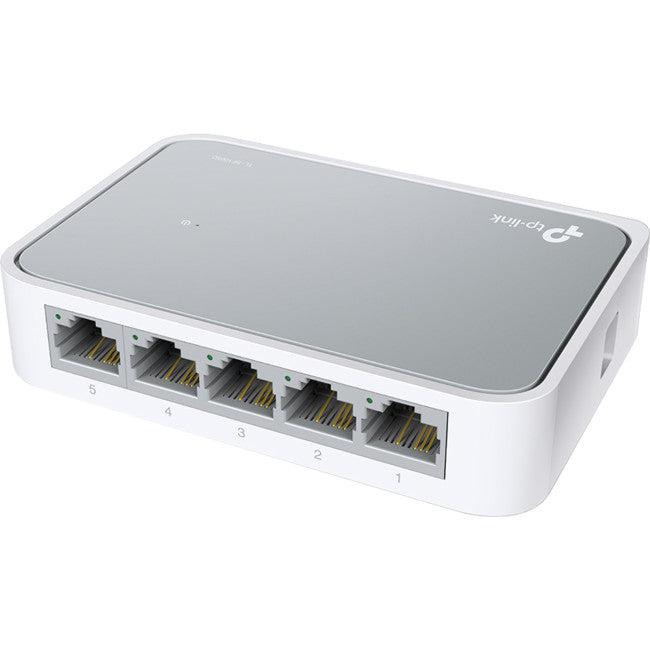

TLSF1005D 5 PORT ETHERNET SWITCH / HUB MINI DESKTOP 10/100M TP-LINK TP-LINK TL-SF1005D

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

TL-SF1005D - 5-port Unmanaged 10/100M Desktop Switch - TP-LINK

The Mini-Switches are designed for easy installation and high performance in an environment where traffic on the network and the number of users increase continuously. TheMini-Switches with their small, compact size are specifically designed for small workgroups or the Small Office/Home Office (SOHO) market today.

These Mini-Switches can be installed where space is limited; moreover, they provide immediate access to a rapidly growing network through a wide range of user-reliable functions. The Mini-Switches are ideal for deployment with multiple high-speed servers for shared bandwidth 10Mbps or 100Mbps workgroups. In 200Mbps full-duplex mode, any port can provide workstations with a congestion-free data pipe for simultaneous access to the server.The Mini-Switches are expandable by cascading two or more switches together. As all ports support 200Mbps full duplex, the Mini-Switches can be cascaded from any port and to any number of switches.

The Mini-Switches are a perfect choice for site planning to upgrade to Fast Ethernet in the future. Ethernetworkgroups can connect to the Mini-Switches now, and change adapters and hubs anytime later without needing to change the Mini-Switches or reconfigure the networks. The Mini-Switches combine dynamic memory allocation with store-and-forward switching to ensure that the buffer is effectively allocated for each port; while, data flow is controlled between the transmitting and receiving nodes to guarantee against all possible packet loss. The Mini-Switches are an unmanaged 10/100 Fast Ethernet Switchthat offers solutions in accelerating small Ethernet workgroup's bandwidths.

FEATURES:

TL-SF1005D 5-port 10/100Mbps Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All portssupport Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

The TP-LINK TL-SF1005D 5-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast asthe speed that your network delivers those packets to them.

• 1Gbps aggregated throughout, true non-blocking switch architecture, full wire speed forwarding.
• Store and forward switching scheme capability to support rate adaptation and ensures data integrity.
• N-way Auto-negotiation for any port. This allows for auto-sensing of speed (10/100Mbps) and auto-detecting mode(Full-duplex or Half-duplex) thereby providing you with automatic and flexible
• solutions in your network connections.
• Zero-Packet Loss Backpressure flow control under half duplex mode.
• Data forwarding rate 148,800 pps per port at 100% of wire-speed for 100Mbps speed.
• Data forwarding rate 14,880 pps per port at 100% of wire-speed for 10Mbps speed.
• Data filtering rate eliminates all error packets, runts, etc. at 148,800 pps per port at 100% of wire-speed for 100Mbps speed.
• Data filtering rate eliminates all error packets, runts, etc. at 14,880 pps per port at 100% of wire-speed for 10Mbps speed.
• 4Kactive MAC address entry table with self-learning and table aging.

SPECIFICATIONS:

• Standards IEEE802.3 10Base-T，IEEE802.3u 100Base-TX
• Protocol CSMA/CD
• Topology Star
• RJ-45 5
• Uplink None
• Switching mode Store-and-Forward
• Filtering and Transmitting speed 10Mbps: 14880pps, 100Mbps: 148800pps
• Flow control mode IEEE 802.3x full-duplex flow controland back pressure flow control
