$0.75

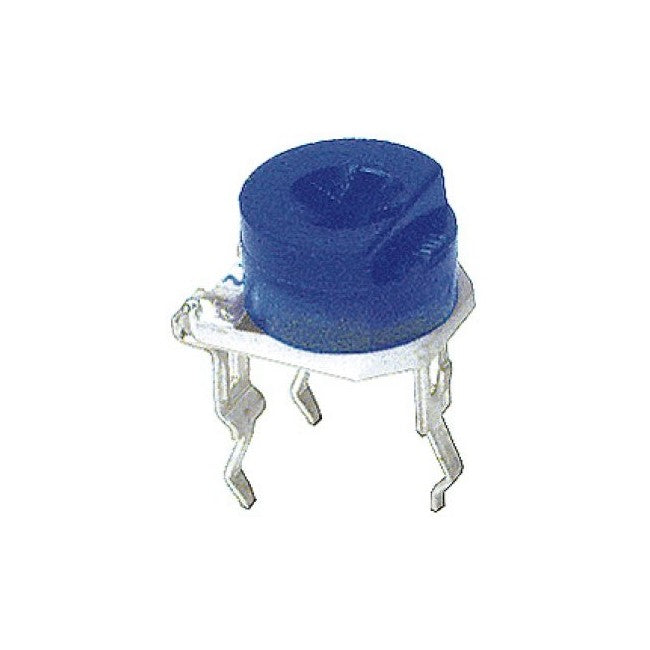

HORIZONTAL MOUNTING WITH VERTICAL ADJUSTMENT
- Sub miniature. 6.4mm Ø
- Designed to fit std .1" grid.
- Resin mold increases reliability in resistance to flux, soldering heat, terminal strength.
- Adjusted on both sides, saves space
- Suits auto insertion & adjustment(Specifications):
- Max. Working Voltage: 100V D.C.
- Resistance Law: Linear
- Resistance Tolerance: ± 20%
- Wattage Rating: 0.2Watt @ 70°C
- Working Temp. Range: - 25°C ~ + 100°C
- Temp. Coefficient: ± 250 PPM/°C
- Rotation Angle: 240° ± 10%
- Rotation Torque: 30 ~ 300 g/cm
- Residual Resistance: < 1K = 10 max.
- Value: 1 Meg
Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.
Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
