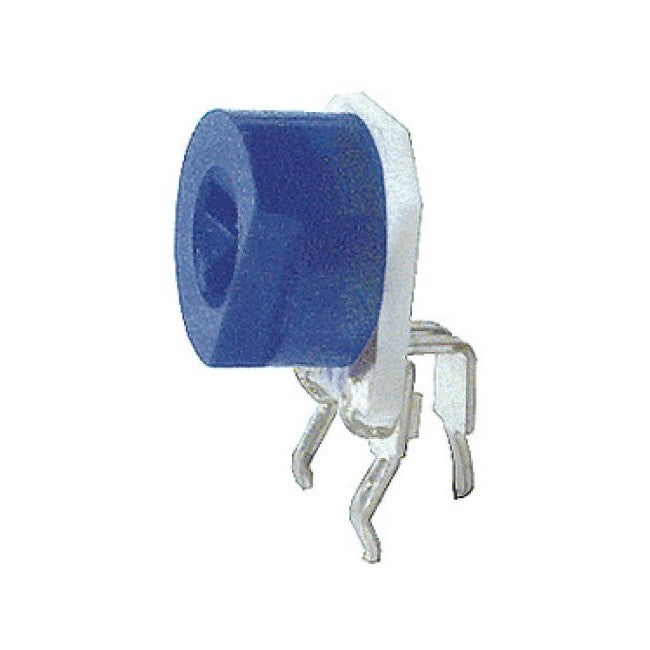

TH1-20KB 20K VERTICAL TRIMPOT SINGLE TURN TRIMMER NETECH HTL20K

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

VERTICAL MOUNTING WITH HORIZONTAL ADJUSTMENT
- Sub miniature. 6.4mm Ø
- Designed to fit std .1" grid.
- Resin mold increases reliability in resistance to flux, soldering heat, terminal strength.
- Adjusted on both sides, saves space
- Suits auto insertion & adjustment(Specifications):
- Max. Working Voltage: 100V D.C.
- Resistance Law: Linear
- Resistance Tolerance: ± 20%
- Wattage Rating: 0.2Watt @ 70°C
- Working Temp. Range: - 25°C ~ + 100°C
- Temp. Coefficient: ± 250 PPM/°C
- Rotation Angle: 240° ± 10%
- Rotation Torque: 30 ~ 300 g/cm
- Residual Resistance: < 1K = 10 max.
- Value: 2k
