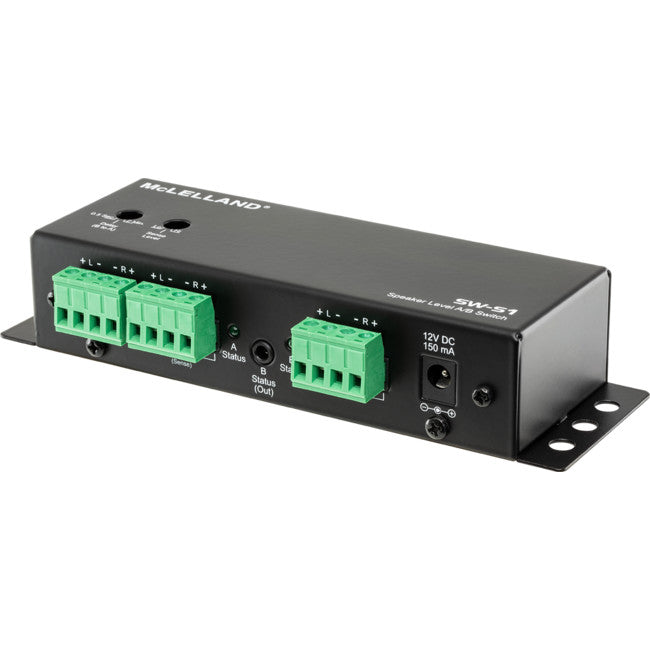

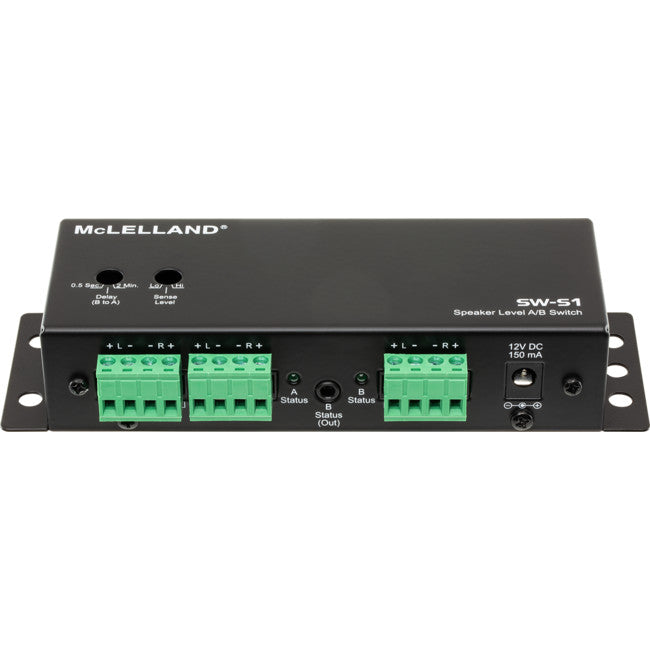

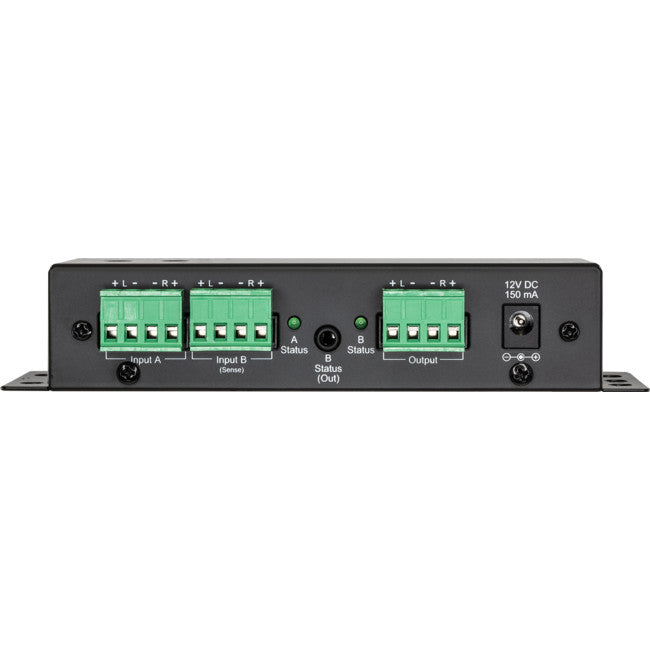

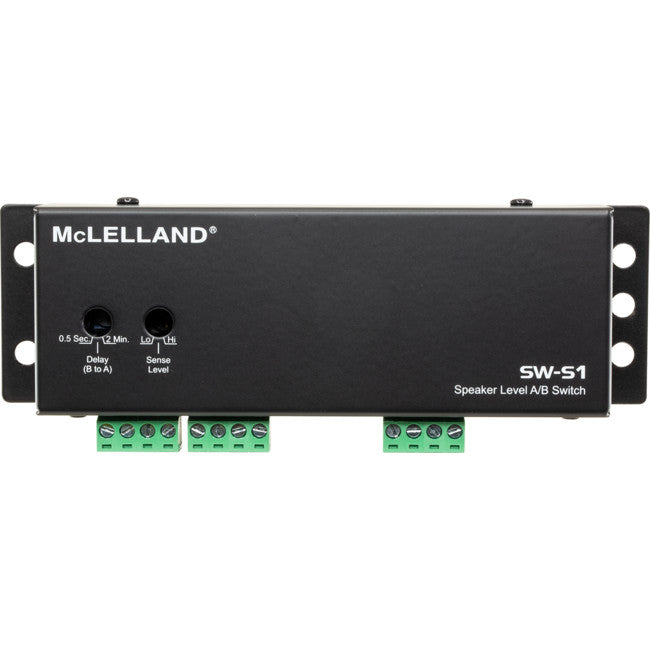

SW-S1 SPEAKER LEVEL AUDIO AB SWITCH MCLELLAND SW-S1

Features

  • Automatically switches the signal to stereo speakersbetween two power amplifiers.
  • Dual Relays handle music power Levels up to 150 Watts.
  • Delay Switch allows setting the Delay time from 0.5 Seconds to 2 Minutes to
  • change the music automatically.
  • Sense Level allows the adjustment of sensitivity to the desired Threshold.
  • A/B Status LED indicate the music plays from Input A or Input B.
  • B Status 3.5mm Output Jack provides 12VDC Trigger to local devices (Lighting,Shades, etc.).
  • Isolated independent ground allows use of BTL (Bridged) Amplifiers.
  • External power supply included
  • Mounting hole for easy installation.

Specifications

  • Delay Range: (0.5-2) Sec, to 2 Min
  • Sensitivity Range: 30mV to 300mV
  • Max, Music Power Handling: 150Watts
  • Independent Grounds: for BTL Amps
  • Dual Relays Contact Rating: 24V@2A
  • B Status Output Voltage: 12V DC @10mA/9V DC @100mA Max.
  • Power Requirements: 12V DC@150mA
  • Power Jack: 2.1mm ,center pole positive
  • Dimensions (WxDxH): 6.5” x 2.35” x 1.25” (165 x 60 x 32 mm)
