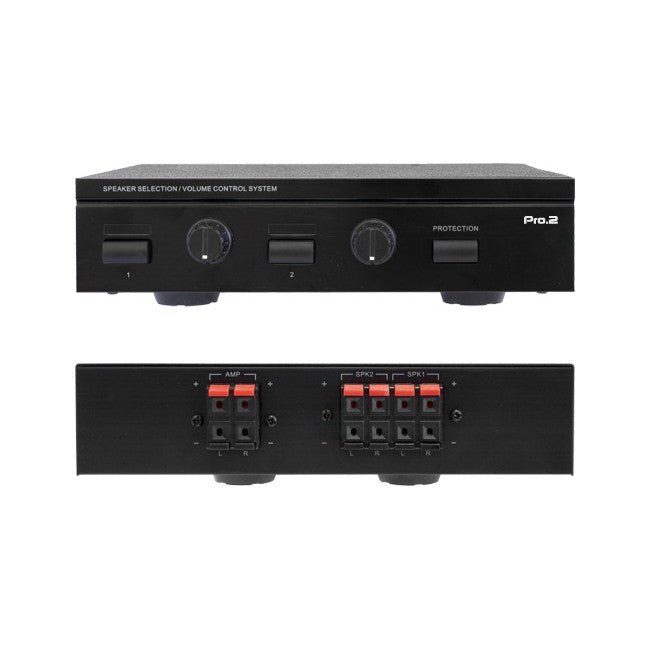

SPS2A 2 WAY SPEAKER SELECTOR/ SWITCH WITH VOLUME CONTROL 50W PRO2 PRO2 A-1060

SPS2A 2 WAY SPEAKER SELECTOR/ SWITCH WITH VOLUME CONTROL 50W PRO2 PRO2 A-1060

PRO2 50W RMS x 2 WAY SPEAKER SELECTOR WITH VOLUME CONTROL

Controls two pairs of speakers. The SPS2A is fitted with separate volume controls, speaker on/ off, and speaker protection on/off switches.

The SPS2A allows independent volume control and on/ off capability for up to two pairs of speakers. You choose where and how loud the music is in a particular location, without effecting the entire system. The speaker selection/ volume control system is equipped with premium 10-step volume controls that maintain full 30dB dynamic range givingyou the maximum adjustment capability.

  • 50 Watts RMS per channel
  • High quality, durable metal cabinet
  • Push-type speaker terminals x 12 (Amp L&R in, Speaker 1 L&R and Speaker 2 L&R out)
  • Speaker 1 and Speaker 2 individual on/off switches
  • Speaker 1 and Speaker 2 individual volume control knobs
  • Speaker protection (impedance correction) circuit with on/off switch
    • Playing 2 pairs of speakers (8ohms), set protection to out position
    • Playing 2 pairs of speakers (4ohms), press in protection button
    {tab Specifications}
    • Power handling: 50 Watts RMS per channel
    • Attenuation (Volume): 10-position volume control
      • 1st position (fully counter clockwise): Volume off
      • 2nd and 3rd position: attenuate 6dB per step (6dB increase in vol)
      • 4th to 9th position: attenuate 3dB per step (3dBincrease in vol)
      • 10th position: Maximum volume
    • Channel separation at 1 KHz: 38dB normal
    • Cross talk between channels at 1 KHz: 50dB normal
    • Speaker terminal wire size: 14-22 AWG
    • Dimensions: 218 (W) x 150 (D) x 55 (H) mm
