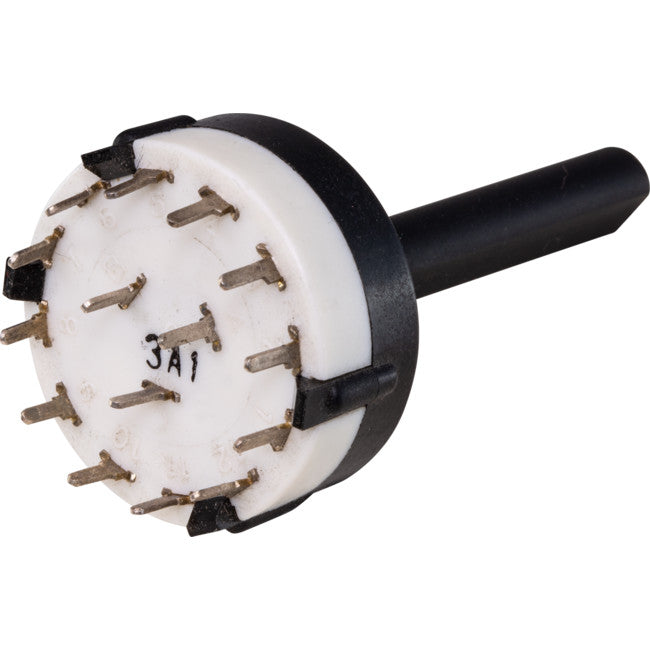

SR6032 3X4 ROTARY SWITCH AC 125V 0.3A 3 POLE 4 POSTION S3025

All moulded plastic, enclosed design with round type shaft. Posidex indexing gives excellent positive movement.

Specifications

Rating AC 125V 0.3A
Contact Resistance 50 m ΩMax.
Insulation Resistance DC500V-100 MΩ Min.
Withstand Voltage AC500V-1 Minute
Contacts Silver plated brass
Connections Solder tag
Life >10,000 cycles
Rotation Torque 0.5±0.2 Kg-cm
Indexing 30°
Base Diametre 26.2mm
Shaft Length/Diam 42/ 6.3mm
Pole numbers 3
Positions 4
Dimension (m.m) Refer to the following drawings
