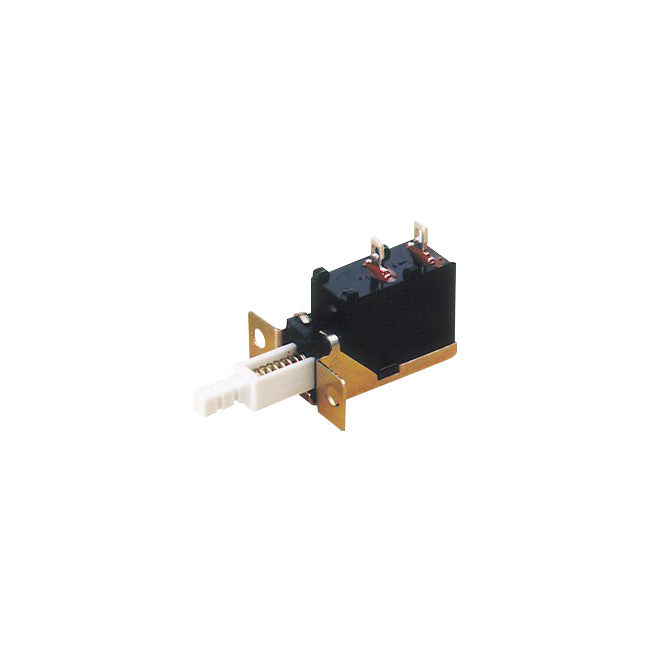

SP3590 SPST PUSH BUTTON POWER SWITCH ON/OFF AC 250V 5A / KDC-A10-1 KDC-A10-1

Specifications

  • Connect type: Single Pole, Single Throw
  • Switch Type: Push On Push Off
  • Material: Metal, Plastic
  • Rated Voltage: 250VAC
  • Rated Current: 5A/80A
  • Dielectric Strength: 2000VAC/ 4000VAC
  • Contact Resistance: ≤50mΩ
  • Insulation Resistance: ≥100mΩ
  • Life long: 10,000 times

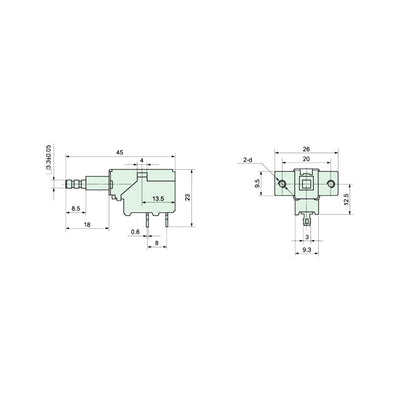

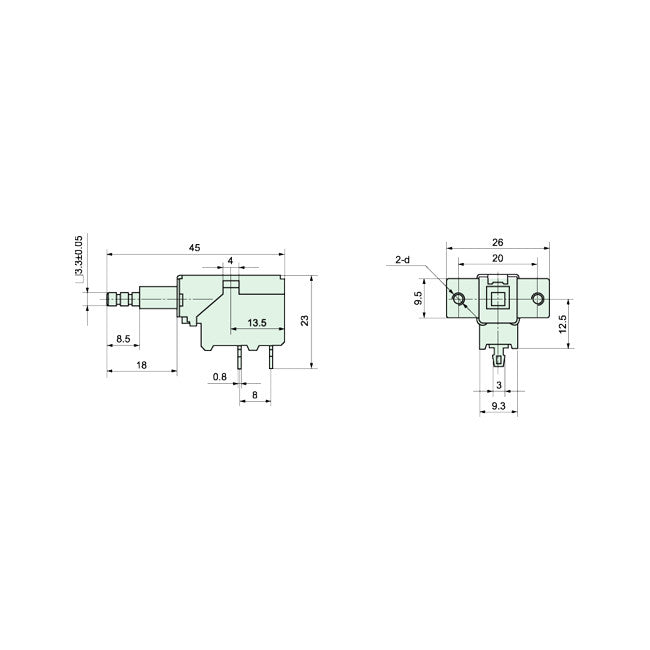

  • Dimension: 45 x 23 x 26mm
