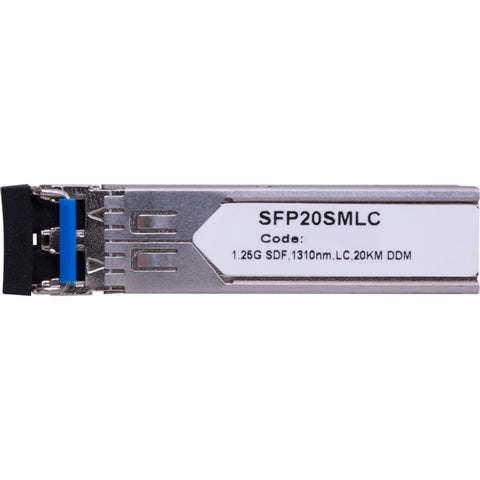

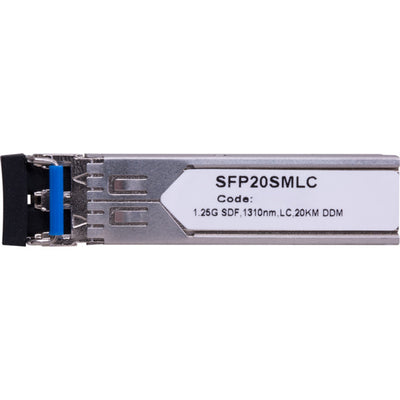

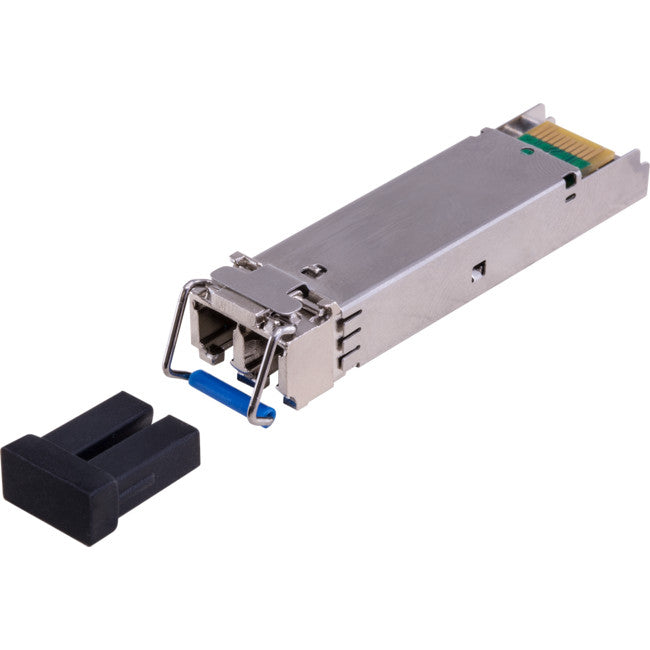

SFP20SMLC 1.25G SFP SM LC 20KM MODULE DUAL FIBRE 1310NM SFP-S1213L-20

SFP20SMLC 1.25G SFP SM LC 20KM MODULE DUAL FIBRE 1310NM SFP-S1213L-20

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Overview

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.



Features

  • Up to 1.25Gbps data links
  • 1310nm FP laser and photo PIN detector for 20km transmission
  • Compliant with SFP MSA and SFF-8472 with Duplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • Compatible with SONET
  • Compatible with RoHS
  • +3.3V single power supply
  •

    Applications

    • SDH and SONET system
    • Fiber Channel
    • Switch to Switch interface
    • Switched backplane applications
    • Router/Server interface
    • Other optical transmission systems

    Optical and Electrical Characteristics




    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Notes

    Transmitter

    Centre Wavelength

    1260

    1310

    1360

    nm



    Spectral Width(RMS)





    4

    nm



    Average OutputPower

    Pout

    -9



    -3

    dBm

    1

    Extinction Ratio

    ER

    9





    dB



    Optical Rise/Fall Time (20%~80%)

    tr/tf





    0.26

    ns



    Data Input Swing Differential

    VIN

    400



    1800

    mV

    2

    Input Differential Impedance

    ZIN

    90

    100

    110

    O



    TXDisable

    Disable



    2.0



    Vcc

    V



    Enable



    0



    0.8

    V



    TXFault

    Fault



    2.0



    Vcc

    V



    Normal



    0



    0.8

    V



    Receiver

    Centre Wavelength

    1260



    1580

    nm



    Receiver Sensitivity







    -23

    dBm

    3

    Receiver Overload



    -3





    dBm

    3

    LOS De-Assert

    LOSD





    -24

    dBm



    LOS Assert

    LOSA

    -35





    dBm



    LOS Hysteresis



    1



    4

    dB



    Data Output Swing Differential

    Vout

    700



    900

    mV

    4

    LOS

    High

    2.0



    Vcc

    V



    Low





    0.8

    V



    Notes:
    1. The optical power is launched into SMF.
    2. PECL input, internally AC-coupled and terminated.
    3. Measured with a PRBS 27-1 test pattern @1250Mbps, BER =1x10-12.
    4. Internally AC-coupled.
