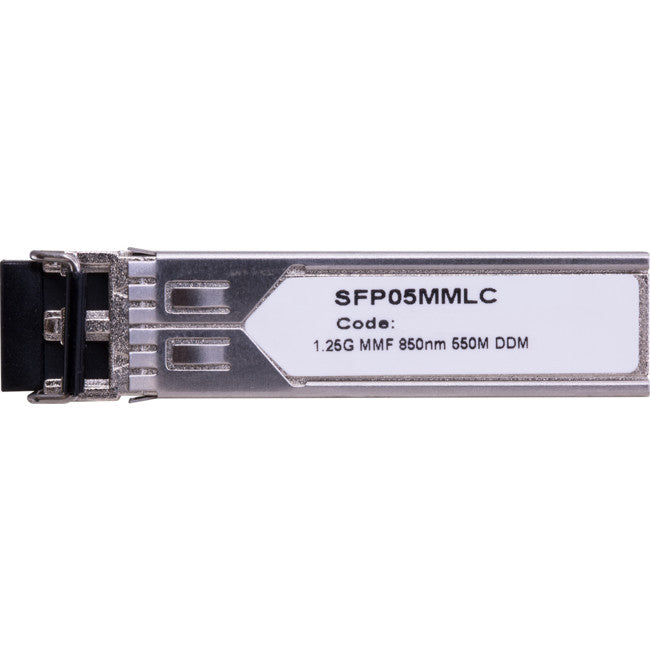

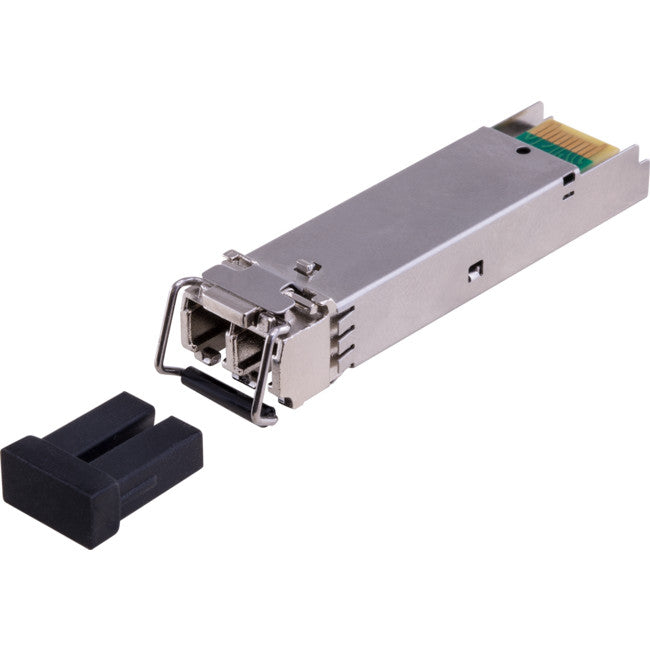

SFP05MMLC 1.25G SFP MM LC 550M MODULE DUAL FIBRE 850NM SFP-M1285L-05

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Overview

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 550m transmission distance with MMF.
The transceiver consists of three sections: a VCSEL lasertransmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.



Features

  • Up to 1.25Gbps data links
  • 850nm VCSEL laser and PIN photodetector
  • Compliant with SFP MSA and SFF-8472 with Duplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • 500m transmission with 50/125µm MMF
  • 300m transmission with 62.5/125µm MMF
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature:
  • Applications

    • SDH and SONET system
    • Fiber Channel
    • Switch to Switch interface
    • Switched backplane applications
    • Router/Server interface
    • Other optical transmission systems

    Optical and Electrical Characteristics


    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Notes

    Transmitter

    Centre Wavelength

    830

    850

    860

    nm



    SpectralWidth (RMS)





    0.85

    nm



    Average Output Power

    Pout

    -9.5



    -3

    dBm

    1

    Extinction Ratio

    ER

    9





    dB



    Optical Rise/Fall Time (20%~80%)

    tr/tf





    0.26

    ns



    Data Input Swing Differential

    VIN

    400



    1800

    mV

    2

    Input Differential Impedance

    ZIN

    90

    100

    110

    O



    TX Disable

    Disable



    2.0



    Vcc

    V



    Enable



    0



    0.8

    V



    TX Fault

    Fault



    2.0



    Vcc

    V



    Normal



    0



    0.8

    V



    Receiver

    Centre Wavelength

    770



    860

    nm



    ReceiverSensitivity







    -18

    dBm

    3

    ReceiverOverload



    -3





    dBm

    3

    LOS De-Assert

    LOSD





    -20

    dBm



    LOS Assert

    LOSA

    -30





    dBm



    LOS Hysteresis



    1



    4

    dB



    Data Output Swing Differential

    Vout

    700



    900

    mV

    4

    LOS

    High

    2.0



    Vcc

    V



    Low





    0.8

    V



    Notes:
    1. The optical power is launched into MMF.
    2. PECL input, internally AC-coupled and terminated.
    3. Measured with a PRBS 27-1 test pattern @1250Mbps, BER =1x10-12.
    4. Internally AC-coupled.
