$1.90

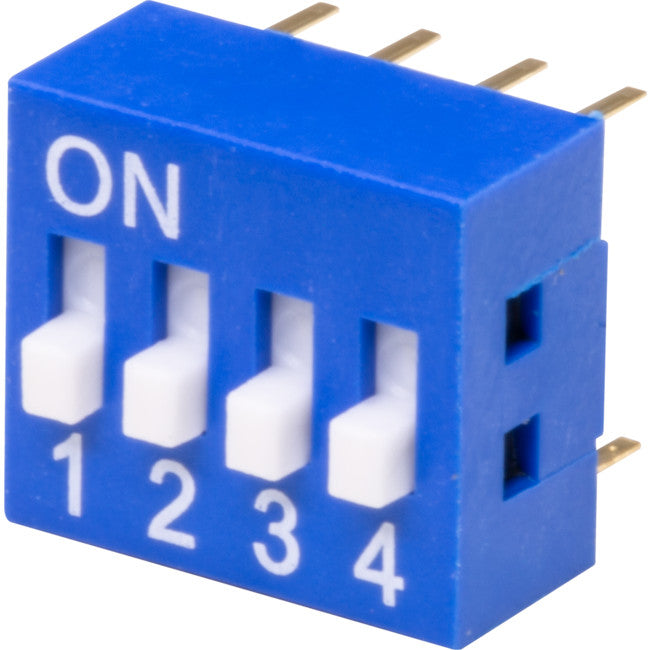

Features: (1) Standard 2.54mm pitch for direct PCB mounting. (2) The precision moulded case and operating mechanism is completely reliable through the use of UL approved material.(3) Sealed to allow auto soldering and to wash away soldering flux, will not breakdown during Ultrasonic weldingprocesses. (4) Gold plating on nickel underplate and a self-cleaning contact point function, give high performance and reliability. (Specifications): - 100mA 50V DC on load. -25m A 25V DC on switching - 100mA 5V DC on switching - Contact Resistance: 50m - Insulation Resistance: 500V DC 100M min - Dielectric Strength: 500V DC 100M min - Durability: 3,000 ops/min. - Operating Force: 500gm ax. - Type: 4 Way. - Dimensions (WHD):13 x 5.6 x 11mm
Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.
Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
