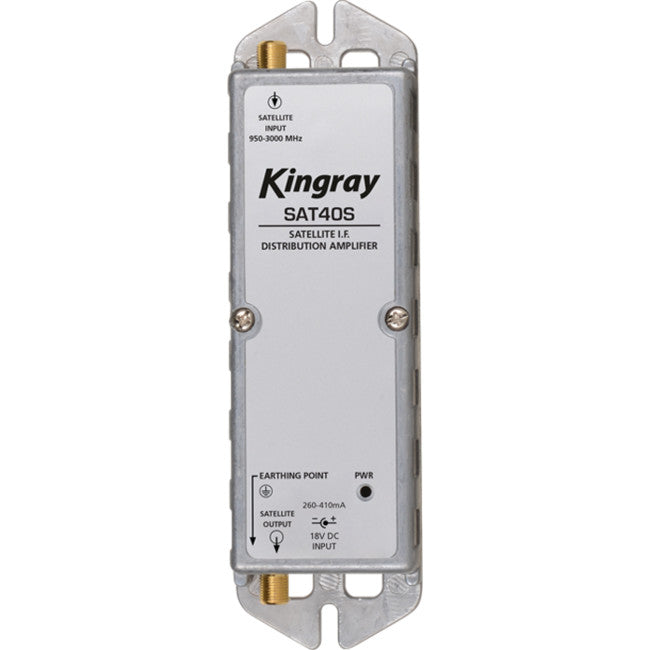

SAT40S SINGLE INPUT SATELLITE AMP FOXTEL APPROVED# F30949 KINGRAY SAT40S

SINGLE INPUT SATELLITE DISTRIBUTION AMPLIFIER

Satellite Distribution Amplifier with 40dB Gain, Single F-Type Input, 950-2400 MHz Frequency Range & can be either locally or remotely powered

The SAT40S is a single input, F-Type satellite distribution amplifier typically used in SMATV’ámultiple dwelling applications. It features’áhigh output with adjustable gain and’áequalisation control. The amplifier is designed’áto be powered by an 18 volt DC power supply, such as the Kingray PSK18S or PSK18F.’áThe SAT40S can be either locally or remote powered.

Key Features

  • Frequency Range 950-2400 MHz
  • 40dB Maximum Gain
  • 20dB Gain Control
  • 15dB Equalisation Control
  • Single Satellite Input & Output
  • High Return Loss
  • Noise Figure <10dB
  • High Output Figure of 122dB IMR3 (DIN45004B)
  • Connectors: F-Type
  • Operating Temperate: -10 to 50 degrees C
  • Power Consumption: 110 - 260 mA (Depending on LNB current drain)
  • Operating Voltage: 18V DC
  • Suitable Power Supply: PSK18S or PSK18F

In the box

  • SAT40S
  • Installation Manual
  • Mounting Screws
