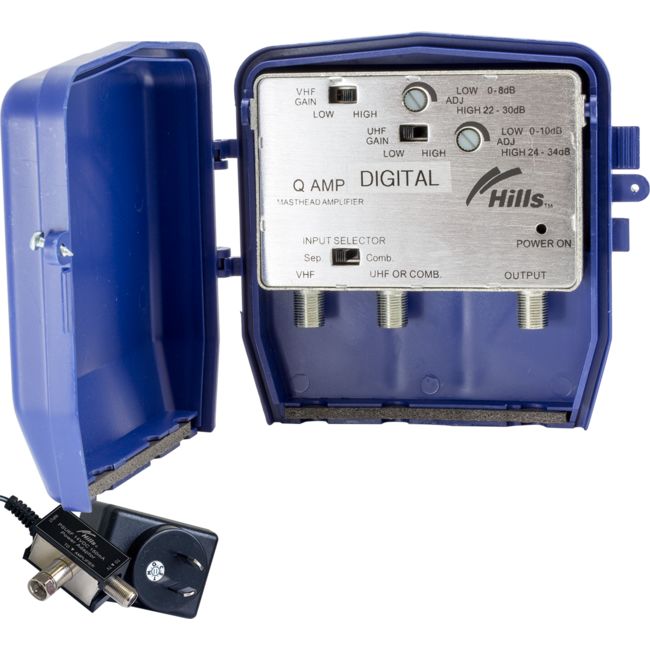

The Hills Q-Amp Digital VHF/UHF Amplifier is a fully flexible high gain masthead amplifier that offers full adjustment for local / remote reception in both the VHF and UHF bands. Designed with a very low noise figure, minimum distortion and channel loading characteristics plus the ability to switch amplifier stages and adjust gain, which ensures that clear reception can be obtained in almost all possible situations without overloading.
This version of the Q-Amp includes a high pass filter, ensuring band 1 and FM VHF signals are not amplified, which reduces noise and low freqeuncy electrical’áinterference.
| Name | Value |
|---|---|
| VHF Freq Range (MHz) | 174 - 230 |
| VHF Gain (dB) | 0 - 8 / 22 - 30 |
| UHF Freq Range (MHz) | 520 - 820 |
| UHF Gain (dB) | 0 - 10 / 24 - 34 |
| Max Output_(DIN45004B) (dBuV) | 104 |
| No of_Outputs | 1 |
| Noise Figure (dB) | <3.5 / <2 |
| Connectors | F Type |
| Shielding | Yes |
| Power Injector | F Type |
| Power Supply | 14 VDC, 150 mA |
| Notch Filters (MHz) | 148, 900 |
| Package | Blister Pack |
