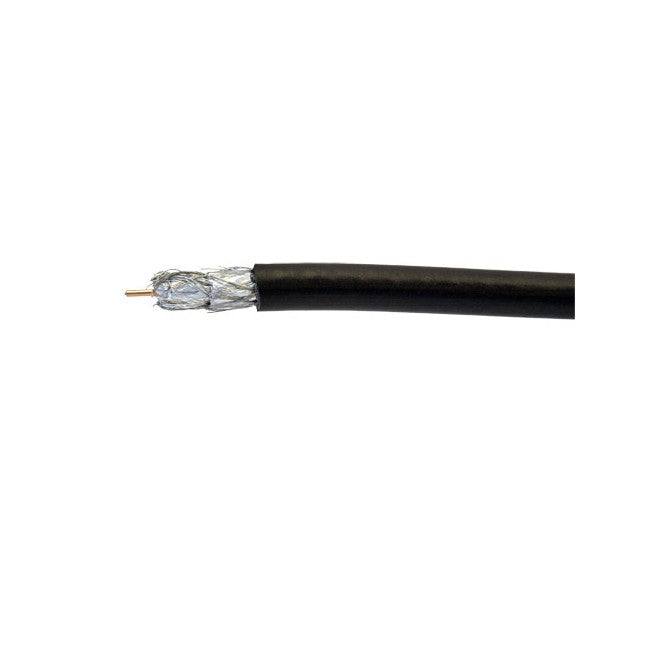

RG6QDB-1M QUAD SHIELD RG6 CABLE 1M 75OHM COAX - 05052100 DOSS

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

METRE CODE:
Please note that this product is sold in METRES.
The product is also available in ROLLS. If you want to order the product in ROLLS, please use CODE 05052100

Inner conductor is a copper clad steel wire within a gas injected polythene foam dielectric. The sheilding is 2x screening of aluminium tape covered with woven aluminium braid outer conductor.

  • 1.02mm copper clad steel centre conductor (Conductivity 20%)
  • 2x Aluminium 60% braid & 2x Sealed APA tape
  • Dielectric:4.57mm Foam Polyethylene
  • First Shield:Bonded AL Foil
  • Second Shield:60% AL Braiding
  • Thrid Shield:AL/PET
  • Fourth Shield:40% AL Braiding
  • Suitable for UHF, Pay, Satellite - Ø7.45mm Jacket (CM RoHS)
  • Nominal Impedance(Ω): 75±3
  • Nominal Velocity of Propagation(%): 85
  • Nominal Capacitance (pF/M): 50
  • Speaker Test (VAC): 4000
  • Attenuation (dB/100m):
    • 4.538 @ 55MHz
    • 8.522 @ 211MHz
    • 12.828 @ 450MHz
    • 18.254 @ 870MHz
    • 19.642 @ 1000MHz
    • 23.899 @ 1440MHz
    • 29.673 @ 2150MHz
    • 35.386 @ 3000MHz
  • Available in:
    • 305 metre Dispensing Box, Wooden Reel with reversed metre marking (305x RG6QDB-1MT)
    • 100 metre roll (RG6QDR-100MT)
    • 30 metre roll (RG6QDR-30MT)
    • By the metre (RG6QDB-1MT)
