$5.45
Characteristic Impedance | 50Ω |
Frequency Range | 0~4GHz |
Operating Temperature | -55°C~ +155°C |
Operating voltage | 500V |
Withstand voltage | 1500V |
Inner Conductor Resistance | ≤1.5mΩ |
Outer Conductor Resistance | ≤1.5mΩ |
insulation Resistance | ≥5000MΩ |
Vertical standing wave ratio | ≤1.22/3GHz |
Bending standing wave ratio | ≤1.30/3GHz |
Mechanical Endurance | 500 times |

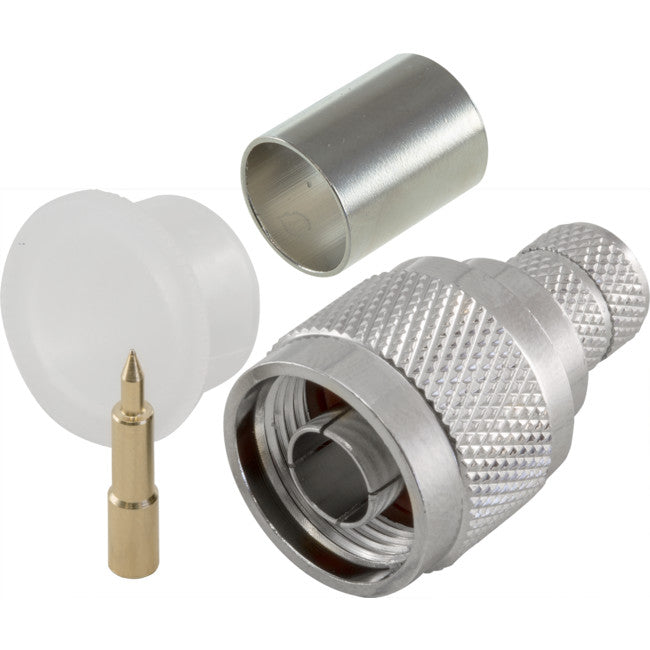

1. Solder the pin to LMR400
2. Push the LMR400 into the plug
3. Crimp
