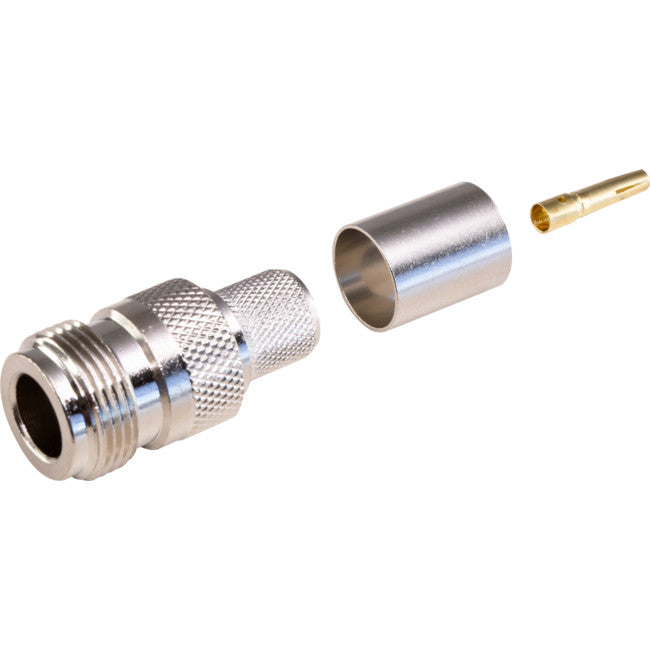

PR1340 "N" SOCKET FOR LMR400 30851340

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Specification

Characteristic Impedance

50Ω

Frequency Range

0~4GHz

Operating Temperature

-55°C~ +155°C

Operating voltage

500V

Withstand voltage

1500V

Inner Conductor Resistance

≤1.5mΩ

Outer Conductor Resistance

≤1.5mΩ

insulation Resistance

≥5000MΩ

Vertical standing wave ratio

≤1.22/3GHz

Bending standing wave ratio

≤1.30/3GHz

Mechanical Endurance

500 times

Quick instruction

1. Refer to the below image, solder the socket pin instead to LMR400

2. Push the LMR400 into the socket

3. Crimp
