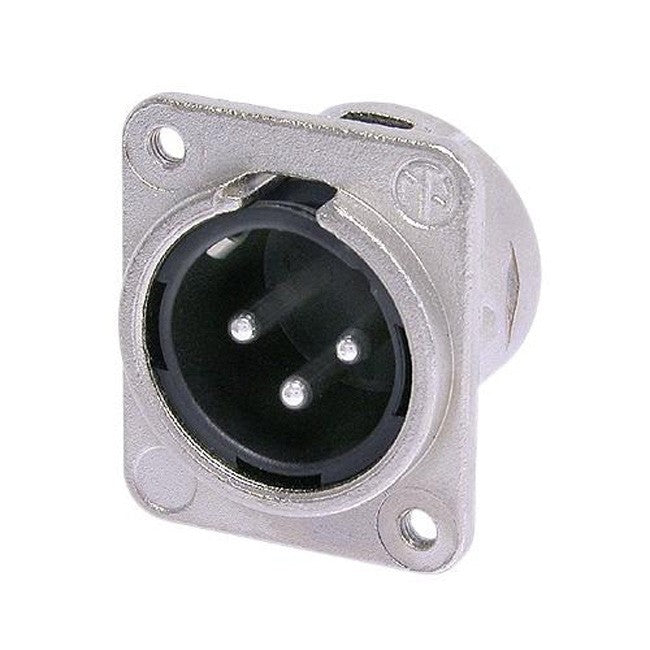

3 pole male receptacle,solder cups,Nickel housing, silver contacts,M3mounting holes
Universal D-size metal body XLR panel mount series. UL recognized component.
Technical Information
| Products | |
| Title | NC3MDM3-L-1 |
| Connection Type | XLR |
| Electrical | |
Capacitance between contacts | = 4 pF |
| Dielectric strength | 1,5 kVdc |
Contact resistance | = 5 mO (inner) |
| Insulation resistance | > 2 GO (initial) |
Rated current per contact | 16 A |
Rated voltage | 50 V |
| Mechanical | |
Insertion force | = 20 N |
Withdrawal force | = 20 N |
Lifetime | > 1000 mating cycles |
Mounting direction | rear |
Chassis shape | D |
Mounting | Mounting holes withM3 threads |
| Wiring | Solder contacts |
Locking device | latch lock |
| Material | |
Contact plating | 2 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating | Nickel |
Strain relief | Polyacetal (POM) |
Boot | Polyuretan |
Bushing | Polyamide (PA 6 15%GR) |
Locking element | Zinc diecast (ZnAl4Cu1) |
| Environmental | |
Approval | UL |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
