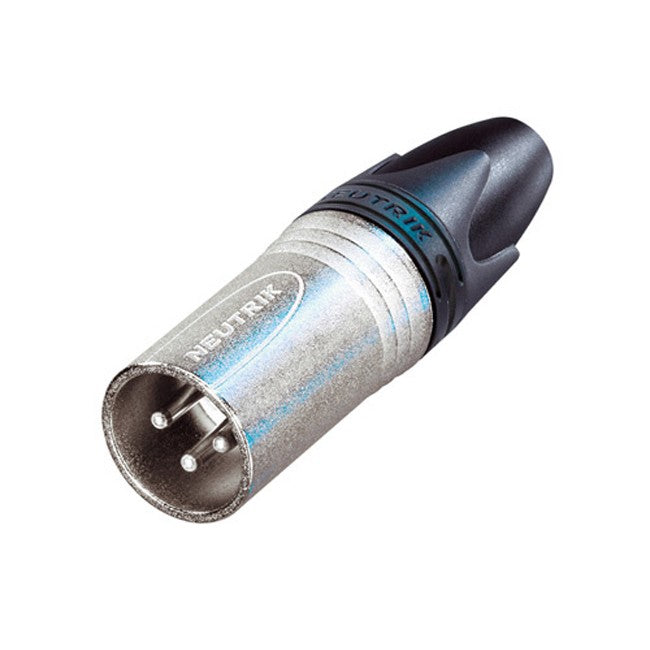

3 pole male cable connector withNickel housing and silver contacts.
The next generation of the worldwide accepted standardof XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Technical Information
| Products | |
| Title | NC3MXX |
| Connection Type | XLR |
| Electrical | |
Capacitance between contacts | = 4 pF |
| Dielectric strength | 1,5 kVdc |
Contact resistance | = 3 mO (inner) |
| Insulation resistance | > 2 GO (initial) |
Rated current per contact | 16 A |
Rated voltage | 50 V |
| Mechanical | |
Insertion force | = 20 N |
Withdrawal force | = 20 N |
Lifetime | > 1000 mating cycles |
Cabel O.D. | 3.5 - 8.0 mm |
| Wiresize | max. 2.5 mm2 |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
Locking device | latch lock |
| Material | |
Contact plating | 2 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating | Nickel |
Strain relief | Polyacetal (POM) |
Boot | Polyuretan |
Bushing | Polyamide (PA 6 15% GR) |
Locking element | Zinc diecast (ZnAl4Cu1) |
| Environmental | |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
