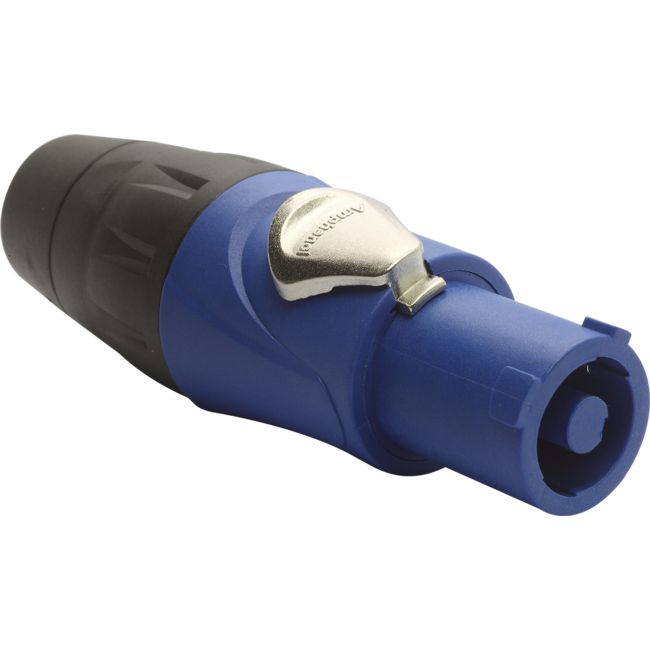

PD4020 25A 250VAC POWERCON CONNECTOR BLUE KEYED FOR POWER IN PUT
HP Series connectors are suitable for AC power supply where a latch locking connector is required. They are rated at 25 A / 250 Vac. Connectors are keyed and colour coded forpower-in (Blue) and power-out (Grey).
Features
- Quick release, vibration resistant latch lock
- 3 pole
- Screw Terminals
- Chuck type cable clamp
- 25A Current rating
- Thermoplastic housing
- Industry standard mating
- UL, cUL recognized components (File no. E339831)
Specs
- Number of contacts: 2 + PE
- Termination: Screw
- Flammability: UL94HB
- Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
- Rated Operating Voltage 250VAC
- Test Voltage AC RMS 1500V
- Current carrying capacity 25A
- Typical Contact Resistance: =3mO
- Insulation Resistance (initial): =2GO
- Insulation Resistance (after damp heat test): =1GO
- Protection Class: IP54
- Operating Temperature: -25°C to +75°C (-13°F to +167°F)
- Weight - Thermoplastic: 32g (0.070lb)
- Typical Cable retention force: 200N (Subject to cable material and O.D.)
- Cable O.D range (Chuck Clamp): 5 - 15mm’ (0.19" -0.59")
- Conductor Size (Screw Terminals): 2.5mm’ (AWG14)
- Connector Shell / Finish: PA66 GF30 / Black
- Insulators: PA66 GF30
- Cable Boot / Backshell: Santoprene / PBT
- Cable Clamp (Chuck): P.O.M
- Contact (Material / Plating): Brass / Silver
