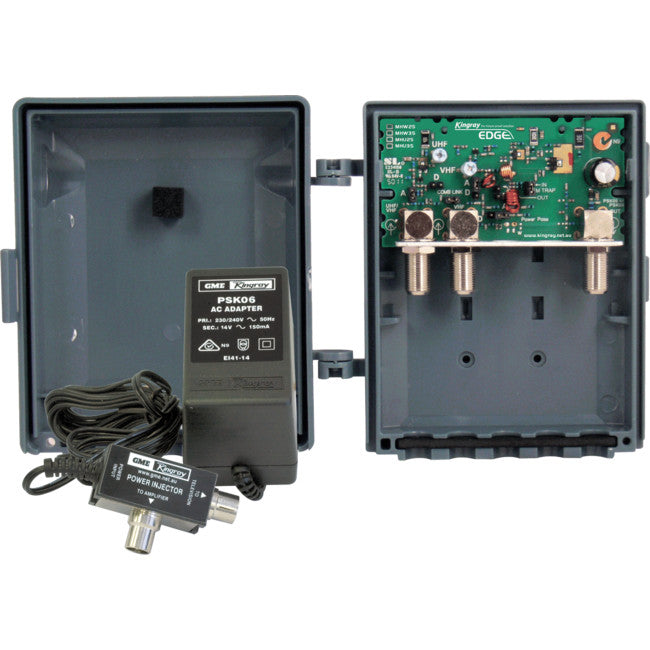

The MHW35F is a VHF/UHF masthead amplifier with the capability to amplify signals either from a combined or separate VHF or UHF antenna; it has F connections is sheilded and is part of the Kingray Edge Series range.
The Kingray Edge series has been engineered to provide a future proof solution with LTE/4G filtering to maximise interference rejection.
The range includes both wideband and UHF only models, allservices above 694 MHz are filtered, rejecting LTE transmissions.
In addition to LTE filtering most wideband models in the Edge series include low band filtering to eliminate all services below 174 MHz
The Edge series is designed to meet the needs of the television reception industry now and well into the future.
In the Box
POWER SUPPLY
| Model | Inputs | Termination | Shielded | Band | Max. Gain | Gain controls | Pager filter | FM filter | Band 1 VHF filter | LTE filter |
| MHW25GE | 1 | S&S | VHF/UHF | 25 | 1 | • | • | |||
| MHW25F | 2 | F | VHF/UHF | 25 | 2 | • | • | • | • | |
| MHW25FS | 2 | F | • | VHF/UHF | 25 | 2 | • | • | • | • |
| MHW25FE | 1 | F | VHF/UHF | 25 | 1 | • | • | • | ||
| MHW25FSE | 1 | F | • | VHF/UHF | 25 | 1 | • | • | • | |
| MHW35G | 2 | S&S | VHF/UHF | 35 | 2 | • | • | • | • | |
| MHW35F | 2 | F | VHF/UHF | 35 | 2 | • | • | • | • | |
| MHW35FS | 2 | F | • | VHF/UHF | 35 | 2 | • | • | • | • |
| MHW43FS | 2 | F | • | VHF/UHF | 43 | 2 | • | • | • | • |
| MHU25GE | 2 | S&S | UHF | 25 | 1 | • | ||||
| MHU25F | 2 | F | UHF | 25 | 1 | • | ||||
| MHU25FS | 2 | F | • | UHF | 25 | 1 | • | |||
| MHU35G | 2 | S&S | UHF | 35 | 1 | • | ||||
| MHU35F | 2 | F | UHF | 35 | 1 | • | ||||
| MHU35FS | 2 | F | • | UHF | 35 | 1 | • | |||
| MHU43FS | 2 | F | • | UHF | 43 | 1 | • |
Fig1. Above the F type socket on the left, you have 2 jumper plugs running horizontally.
Fig2. Remove them by hand.
Fig3. And plug them in to the right, under D.
Fig4. The top one is done.
Fig5. And now the bottom one is done.
The problem is fixed... We hope!
