MHU25FS 25DB UHF MASTHEAD AMPLIFIER WITH LTE/4G FILTERING KINGRAY KINGRAY MHU25FS

MHU25FS 25DB UHF MASTHEAD AMPLIFIER WITH LTE/4G FILTERING KINGRAY KINGRAY MHU25FS

Overview

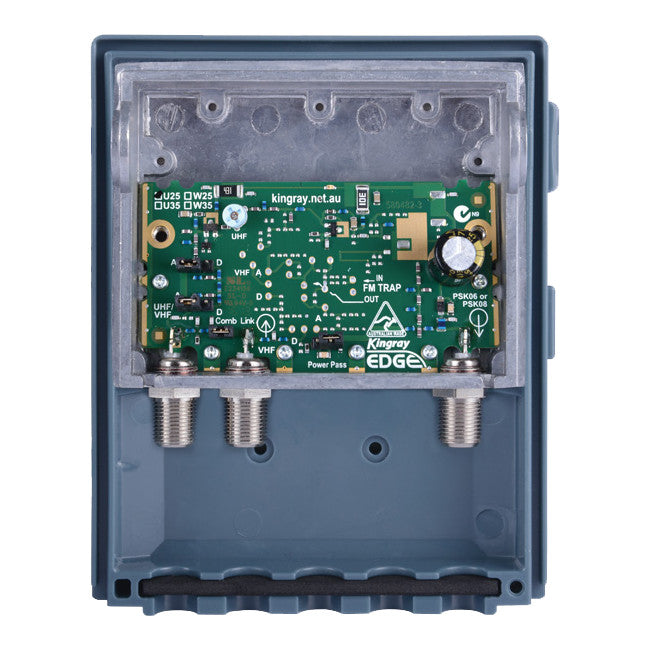

MHU25FS 25DB UHF SHIELDED MASTHEAD AMPLIFIER - KINGRAY

Are you protected from LTE

The MHU25FS is a UHF masthead amplifier with the capability to diplex VHF, either from combined or separate VHF and UHF antennas; it has F connections, is shielded and is part of the Kingray Edge Series range.

The Kingray Edge series has been engineered to provide a future proof solution with LTE/4G filtering to maximise interference rejection.

The range includes both wideband and UHF only models, all services above 694 MHz are filtered, rejecting LTE transmissions.

In addition to LTE filtering most wideband models in the Edge series include low band filtering to eliminate all services below 174 MHz

The Edge series is designed to meet the needs of the television reception industry now and well into the future.



Optional plug pack's: PSK06, PSK08, PSK06F or PSK08F.

Features

  • UHF amplifier with VHF diplexing
  • Separate or combined inputs
  • LTE filtering
  • UHF gain control
  • Fully sheilded housing
  • F type connections
  • 100% weatherproof case

Specifications

ELECTRICAL SPECIFICATION

  • Frequency Range VHF: 174 - 230 MHz, UHF: 520 - 820 MHz
  • Maximum Gain VHF -2, UHF 35 dB
  • Gain Control Range 10 dB
  • Maximum Output Level 108dB’…V @ - 60 dB IMR (DIN45004B)
  • Noise Figure UHF: <2.5 dB
  • LTE Filter -25dB @ 750MHz

MECHANICAL SPECIFICATION

  • Input Connector F type
  • Output Connector F type

POWER SUPPLY

  • Suitable plug pack PSK06/08, PSK06/08F, KPS06/08, KPS06/08F
  • Power Consumption 70 mA

IN THE BOX:

  • MHU25FS
  • Cable Tie
  • Installation Manual
