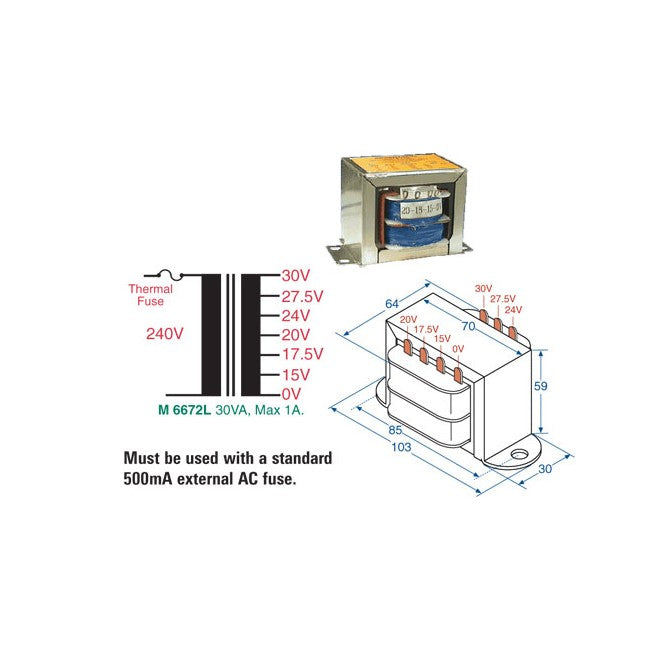

M6672L 15V- 30V 1A MAINS TRANSFORMER 30VA MULTIPLE TAPPED VOLTAGES M6672L

  • Specifications
  •  Primary voltage: 240V AC
  • Total VA rating: 30VA
  • Insulation: Class E (120°C)
  • Magnetising current: <80mA
  • Temperature rise: <65°C
  • Regulation: ˜8%
  • Recommended primary AC fuse: 500mA
  • Weight: ˜1kg
  • Primary connection: 200mm fly leads
  • Secondary connection: Solder tags
  • AS/NZS 61558.2.6 approval: Q042029
  • AS3108 approval: CS/814/Q
  • Primary fitted with 200mm fly leads. Secondary taps have solder tags.
