- Primary voltage: 240V AC
- Total VA rating: 72VA
- Insulation: Class E (120°C)
- Magnetising current: <85mA
- Temperature rise: <65°C
- Regulation: ˜10%
- Recommended primary AC fuse: 500mA
- Weight: ˜1.4kg
- Primary connection: 200mm fly leads
- Secondary connection: Solder tags
- AS/NZS 61558.2.6 approval: Q042028
- AS3108 approval: CS/813/Q
- Primary fitted with 200mm fly leads. Secondary fitted with fly leads

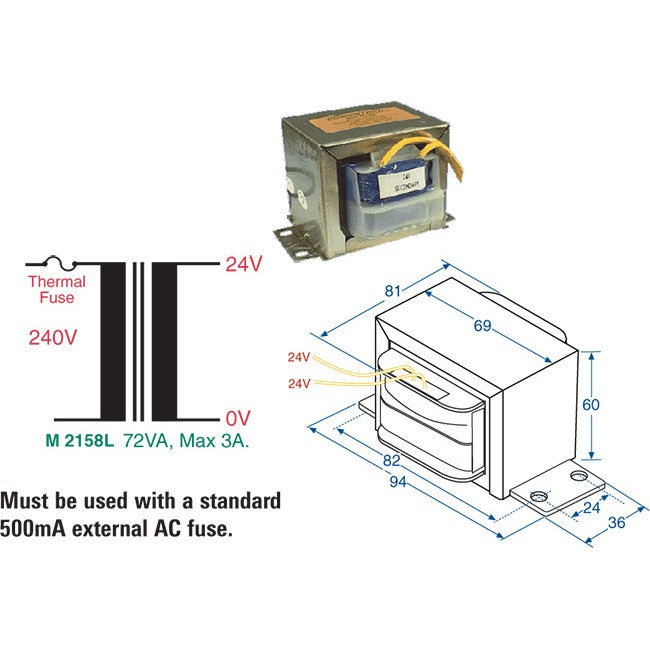

Dimensions: A-60, B-82, C-94, D-81 mm
