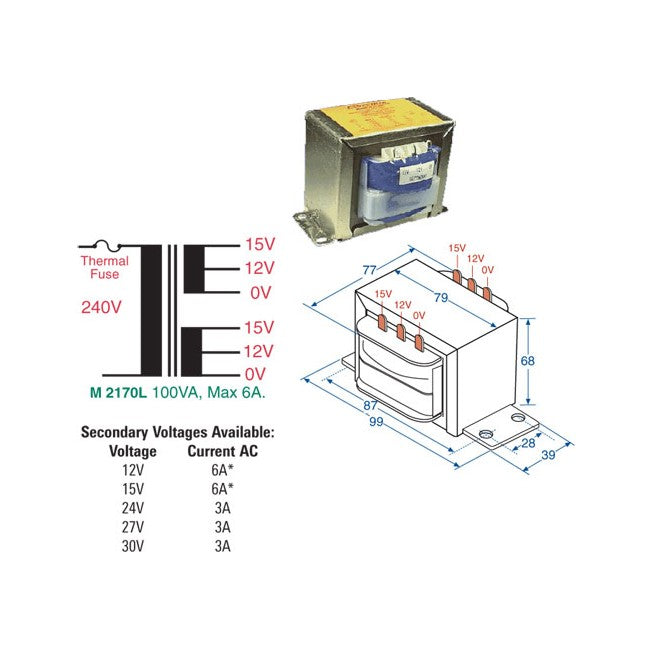

M2170L 12V- 30V 3A MAINS TRANSFORMER 100VA MULTIPLE TAPPED VOLTAGES M2170L

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

• Specifications


•  Primary Voltage: 240V AC
• Total VA Rating: 100VA
• Insulation: Class E (120°C)
• Magnetising Current: <85mA
• Temperature Rise: <70°C
• Regulation: ˜14%
• Recommended primary AC Fuse: 500mA
• Weight: ˜1.6kg
• Primary connection: 200mm fly leads
• Secondary connection: Solder tags
• AS/NZS 61558.2.6 approval: Q042028
• AS3108 approval: CS/813/Q


•  Secondary Voltages Available:

•  Voltage : 12V Current : 6A*
• Voltage : 15V Current : 6A*
• Voltage : 24V Current : 3A
• Voltage : 27V Current : 3A
• Voltage : 30V Current : 3A
• *Max Current when connected in parallel
• Primary fitted with 200mm fly leads. Secondary taps have solder tags.
