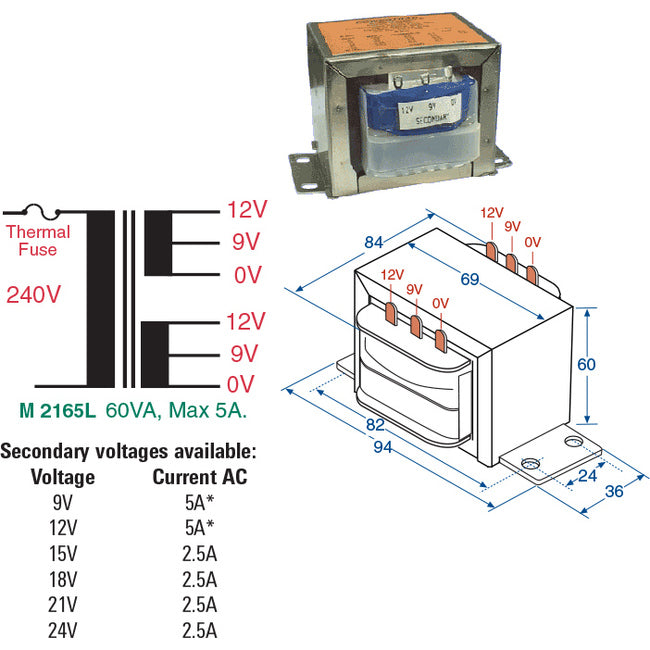

M2165L 9V- 24V 2.5A MAINS TRANSFORMER 60VA MULTIPLE TAPPED VOLTAGES M2165L

  • Specifications
  •  Primary voltage: 240V AC
  • Total VA rating: 60VA
  • Insulation: Class E (120°C)
  • Magnetising current: <85mA
  • Temperature rise: <65°C
  • Regulation: ˜10%
  • Recommended primary AC fuse: 500mA
  • Weight: ˜1.4kg
  • Primary connection: 200mm fly leads
  • Secondary connection: Solder tags
  • AS/NZS 61558.2.6 approval: Q042028
  • AS3108 approval: CS/813/Q
  • Secondary Voltages Available:
  • Voltage : 9V Current : 5A*
  • Voltage : 12V Current : 5A*
  • Voltage : 15V Current : 2.5A
  • Voltage : 18V Current : 2.5A
  • Voltage : 21V Current : 2.5A
  • Voltage : 24V Current : 2.5A
  • *Max Current when connected in parallel
  • Primary fitted with 200mm fly leads. Secondary taps have solder tags.
