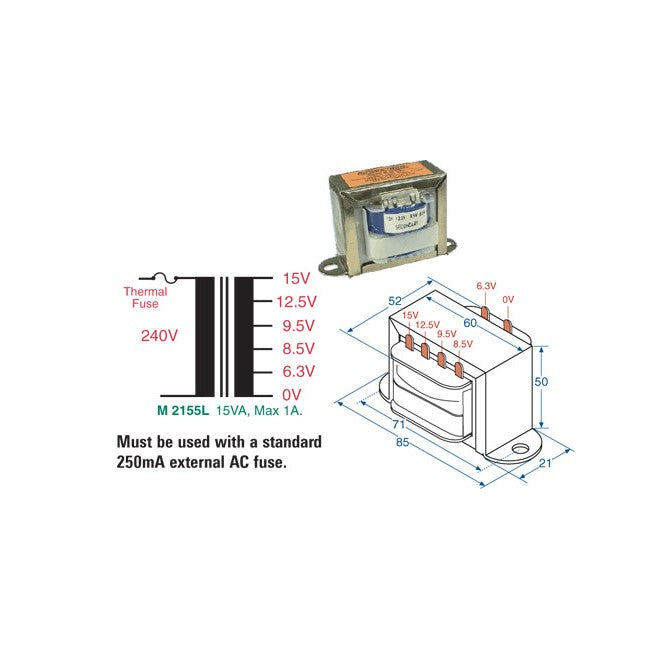

M2155L 6.3V- 15V 1A MAINS TRANSFORMER 15VA MULTIPLE TAPPED VOLTAGES M2155L

M2155L 6.3V- 15V 1A MAINS TRANSFORMER 15VA MULTIPLE TAPPED VOLTAGES M2155L

M2155L 6.3V- 15V 1A MAINS TRANSFORMER 15VA MULTIPLE TAPPED VOLTAGES M2155L

$21.75

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Specifications

Primary voltage: 240V AC
Total VA rating: 15VA
Insulation: Class E (120°C)
Magnetising current: <60mA
Temperature rise: <60°C
Regulation: ˜10%
Recommended primary AC fuse: 250mA
Weight: ˜555g
Primary connection: 200mm fly leads
Secondary connection: Solder tags
AS/NZS 61558.2.6 approval: Q042028
AS3108 approval: CS/813/Q
Primary fitted with 200mm fly leads. Secondary taps have solder tags.
