LC1550 15M M/M VGA + DIN13 LEAD FOR PASSING WALL 2PCS PER SET PRO2

LC1550 15M M/M VGA + DIN13 LEAD FOR PASSING WALL 2PCS PER SET PRO2

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

15MT IN-WALL INSTALLERS VGA PLUG TO PLUG LEAD WITH FILTER

This super VGA extension lead is known as the best in the industry.

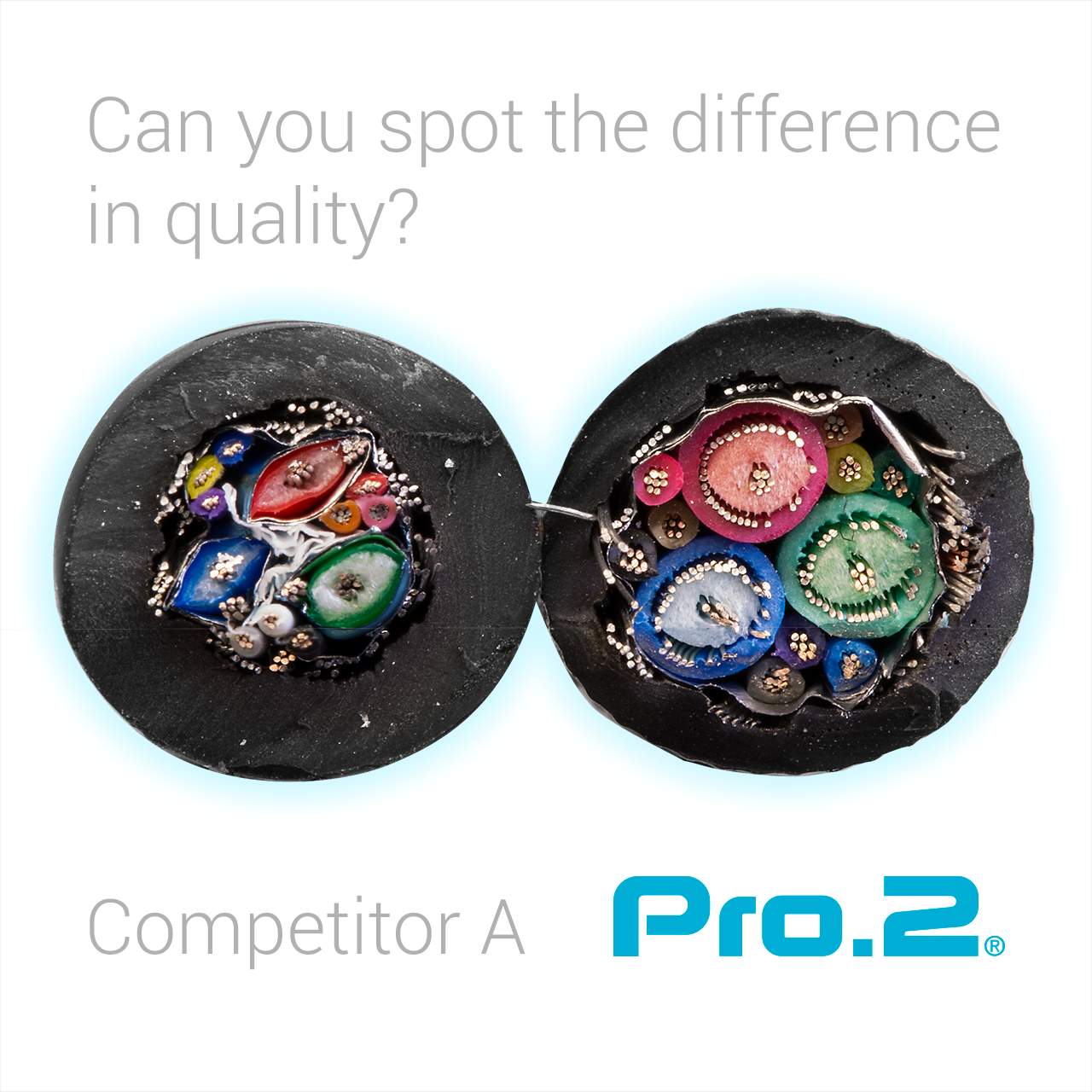

The lead is made in the premium 3x RGB Coax plus 9 wiring configuration, which can minimise the quality loss inlong distance.

Two ferrite filters at both ends also reduce any video interference.

FEATURES:

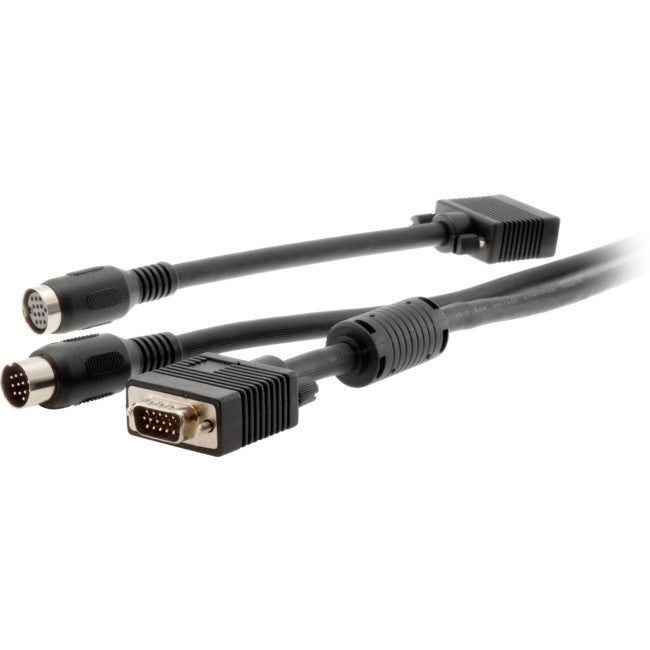

  • This specialy designed VGA lead consists of two parts,you can easily attach them together to make up one complete VGA lead.
  • This VGA lead is designed to be easily inserted through inwall installations, perfect for your professionalinstaller and DIY'er
  • You only need to drill a small DIN plug sized hole in your wall, instead of big VGA plug size hole.

SPECIFICATIONS:

  • 3 RGB Coax + 9 wiring configuration
  • Ferrite Filters at both ends - Dimensions: 17.5mm X 28.5mm X 9.5mm
  • AWG28, OD=8.5mm
  • Black dentate cable with PVC jacket
  • HD15 plug to HD15 Plug lead - with DIN13 plug to socket join between
  • 4x R37.7 screws (2x each end): for secure connection
  • HD15 plugs: Blue with all 15 pin connection
  • Cable: Black insulation
  • DIN13 Plug (pull-through diameter): Ø18.5mm
  • Length: 15m from HD15 plug to Din13 plug and 0.2m fromDin13 socket to HD15 plug
