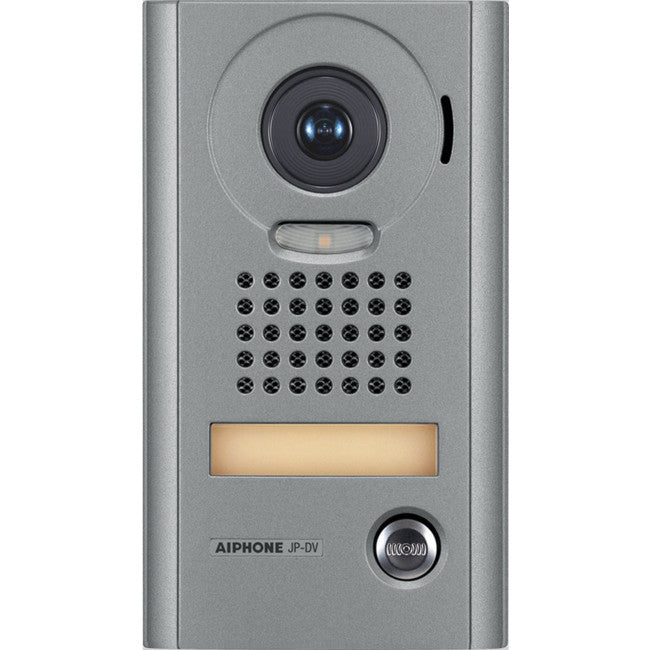

Aiphone JPDV diecast steel vandal resistant surface mount door station
There arethree video door stations available for use with the Aiphone JP series video intercom systems. All these door stations have a very wide viewing angleof 170 degrees.
The JPDVF, door stationis supplied with a flush mount back box.
All models are weather resistant,are designed for outdoor use and are covered by a three year warranty.
30 degree angle boxes are available for the JPDV and JPDAcolour video door stations. The JFWD for use with the JPDV and the KAWD for use with the JPDA door station.
These angle boxes are particular useful when a door station is installed on an entrance with double doors or glass panelling on either side of the door.
The angle box enables the door station to be angled towards the door giving a better view of the area in front of the door. Both boxes are constructed of plastic.
Dimensions | |||
Model | Height | Width | Depth |
JPDA | 129mm | 97mm | 35.5mm |
JPDV | 173mm | 98mm | 29.5mm |
JPDVF | 209mm | 135mm | See below |
Flush mount door station hole cut out dimensions | |||
Model | Height | Width | Depth |
JKDVF | 180mm | 110mm | 45mm |
