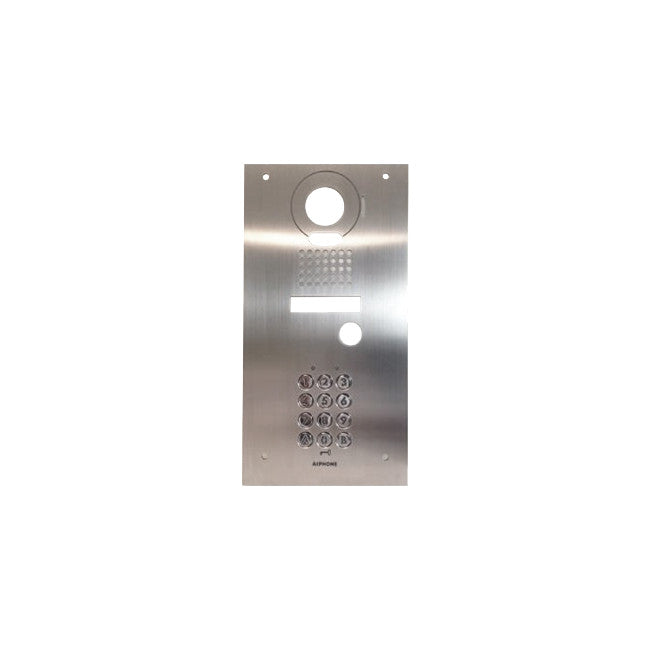

JXDVFAC MARINE GRADE PANEL WITH AC10U SUITS JO - JP SERIES AIPHONE 21810721

$1,008.48

Jx-DVF-AC KEYPAD INTEGRATED FLUSH MOUNT PLATE

FOR JO-DVF and JP-DVF Cameras NOT supplied with mountingplate

The JX-DVF-AC is a Marine Grade panel with an intergrated- AC10U key pad and is for attaching existing JO-DVF or JP-DVF onto the Jx-DVF-AC

The Jx-DVF-AC is only compatible with JO-DVF and JP-DVF entrnace station, therefore the JOS-1F kit or the JPS-4AEDF kit can also be used

Package contents

Jx-DVF-AC ( AC10U ) mounted
Back box for Jx-DVF-AC

Note: still requires power supply for access control

NOTE:

When dismantling existing plate from JO-DVF / JP-DVF keepthe following to re-assemble on JX-DVF-AC plate

Security Screws
4 x Nuts & Washers
4 x White plastic stand offs
Black plastic LED Casing

Specifications

GENERAL
Dimensions	Door station	295(H) x 144(W) x 8(D) ( Recess: 30)mm
	Flush Mount Back Box	263(H) x 114(W) x 45(D)

Access Control Key Pad	Power Supply	12 - 24V AC
		12 - 24V DC
	Power consumption	DC - Max: 70mA
		AC - Max: 100mA

	Number of relay circuits	2
	Relay Contact	N/O, N/C
	Relay Contact Capacity	24V DC, 3A ( resistive load ) 1A ( Inductive load )
		24V AC, 3A ( resistive load ) 1A ( Inductive load )
